174915-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: PCB Mount Orientation Horizontal | Number of Sections 4 | Number of Positions 76 | Number of Signal Positions 76 | Number of Rows 2 | Contact Features: Mating Tab Thickness .025 INCH | Contact Type Tab | Mating Tab Width .07 INCH | Mating Tab Width 1.77 MM | Contact Size 1.8mm | Mating Tab Thickness .64 MM | Contact Mating Area Plating Material Tin | Contact Size 1mm | Mating Tab Width 1 MM | Mating Tab Width .039 INCH | Dimensions: Connect

Download 174915-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

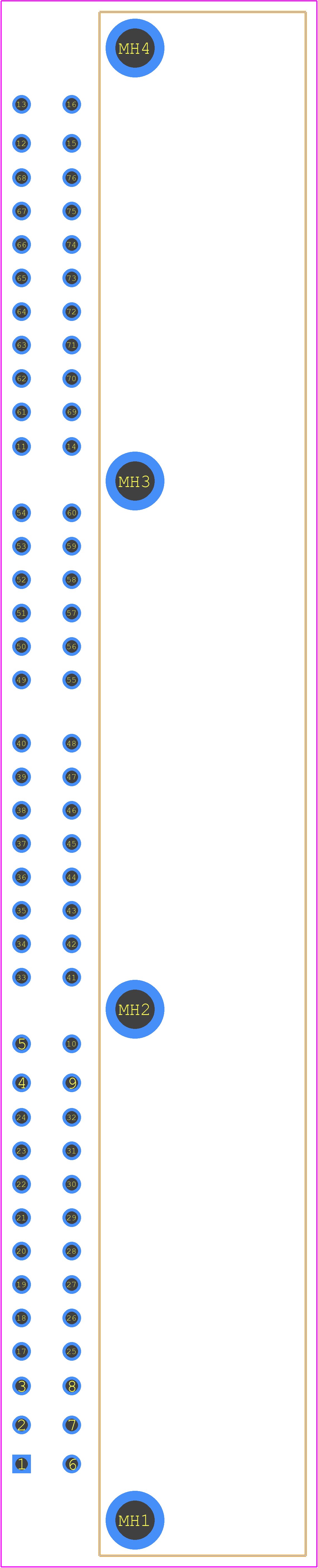

174915-6 - TE Connectivity PCB footprint - Other - Other - 174915-6-1
click to zoom
3D Models
174915-6 - TE Connectivity  - 3D model - Other - 174915-6-1
click to zoom

174915-6 Details

  • Manufacturer Part Number:

    174915-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.728 inch

  • Body Depth:

    0.728 inch

  • Body Length:

    5.1 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    76

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

174915-6 Overview
