174917-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Positions 48 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Housing Features: Centerline (Pitch) .138 INCH | Centerline (Pitch) 3 MM | Centerline (Pitch) .118 INCH | Centerline (Pitch) 3.5 MM | Mechanical Attachment: Mating Alignment With | PCB Mount Retention Without | PCB Mount Alignment With | Connector Mounting Type Board Mount | Ope

Download 174917-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
174917-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

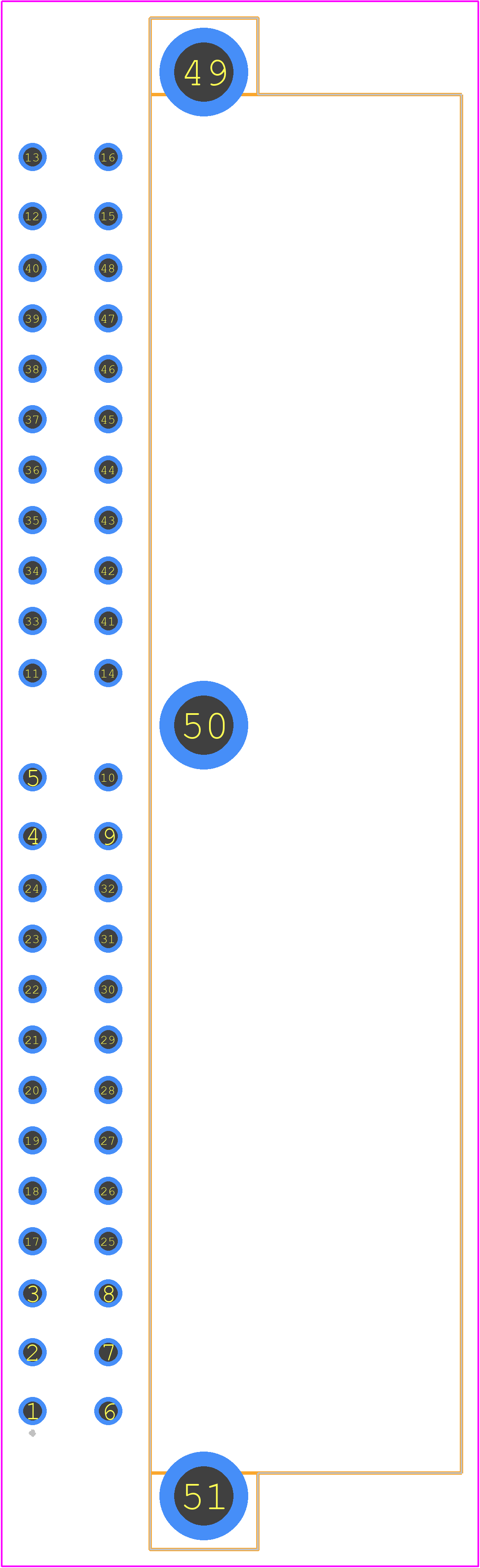

174917-6 - TE Connectivity PCB footprint - Other - Other - 174917-6
click to zoom
3D Models
174917-6 - TE Connectivity - 3D model - Other - 174917-6
click to zoom

174917-6 Details

  • Manufacturer Part Number:

    174917-6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

174917-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 174917-6 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with a TE Connectivity representative for specific application guidance.
  • The operating temperature range for the 174917-6 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 174917-6 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect the connector from moisture and environmental factors.
  • It's not recommended to use a wire gauge that's not specified in the datasheet, as it may affect the connector's performance and reliability. However, if you need to use a different wire gauge, consult with a TE Connectivity representative for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

174917-6 Overview

Use the download button to access the 174917-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17491, or try a keyword search, such as Combination Line Connectors
