1749609 - Phoenix Contact

Description: MCDN 1,5/10-G1-3,81 P26THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 2, number of positions: 10, number of connections: 20, product range: MCDN 1,5/..-G1-THR, pitch: 3.81 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC

Download 1749609 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1749609 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

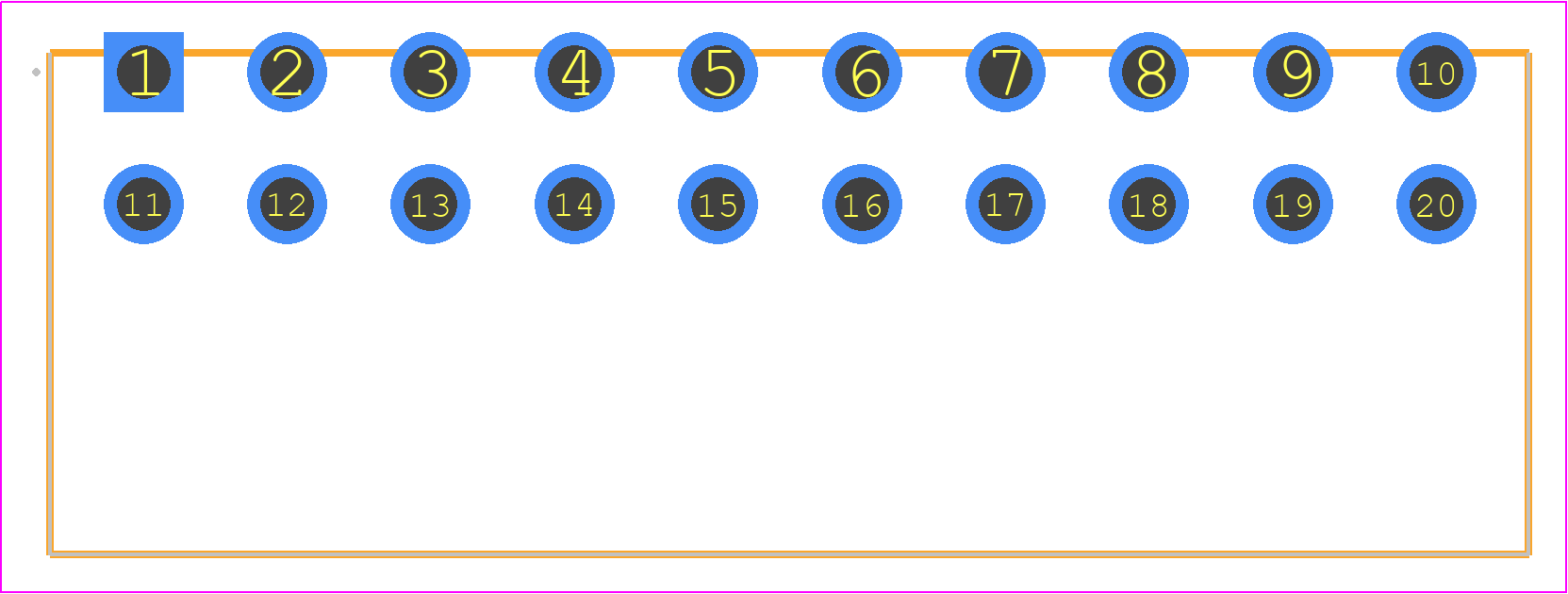

1749609 - Phoenix Contact PCB footprint - Other - Other - 1749609
click to zoom
3D Models
1749609 - Phoenix Contact - 3D model - Other - 1749609
click to zoom

1749609 Details

  • Manufacturer Part Number:

    1749609

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Bulgaria

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1749609 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1749609 is -40°C to 125°C.
  • Yes, the 1749609 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1749609 is certified for use in hazardous locations, including Class I, Division 2, and Zone 2 areas.
  • The maximum wire size that can be connected to the 1749609 is 2.5 mm² (AWG 14).
  • Yes, the 1749609 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1749609 Overview

Use the download button to access the 1749609 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17496, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
