174975-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Rows 2 | Number of Positions 16 | Number of Sections 1 | Number of Signal Positions 16 | Contact Features: Mating Tab Thickness .025 INCH | Mating Tab Width 1 MM | Contact Size 1mm | Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Width .039 INCH | Mating Tab Thickness .64 MM | Dimensions: Connector Width 1.28 INCH | PCB Thickness (Recommended) .063 INCH | Profile Height f

Download 174975-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

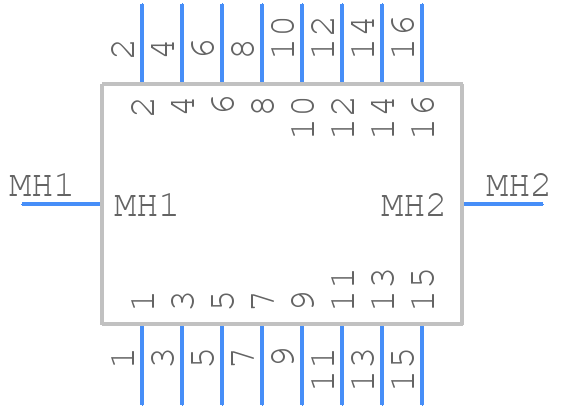

174975-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

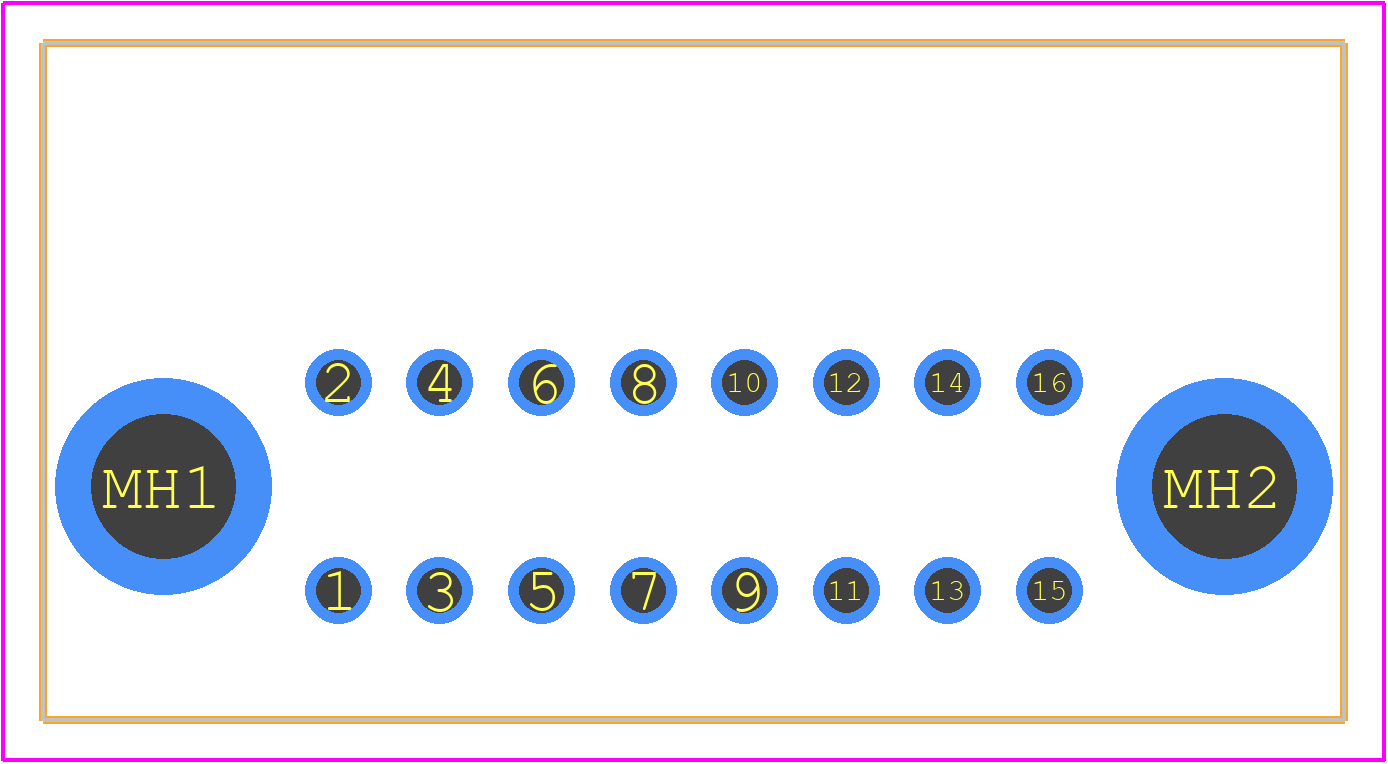

174975-2 - TE Connectivity PCB footprint - Other - Other - 174975-2-1
click to zoom
3D Models
174975-2 - TE Connectivity - 3D model - Other - 174975-2-1
click to zoom

174975-2 Details

  • Manufacturer Part Number:

    174975-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    1.28 inch

  • Body Length:

    0.665 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    174046-2

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

174975-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 174975-2 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, automotive, and aerospace.
  • The 174975-2 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is resistant to many chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and TE Connectivity's application notes for specific guidance on environmental compatibility.
  • The maximum current rating for the 174975-2 connector is 3A per contact, but this may vary depending on the specific application and environmental conditions. It's recommended to consult the datasheet and TE Connectivity's application notes for specific guidance on current ratings.
  • Yes, the 174975-2 connector is designed to meet the requirements of high-reliability applications, including aerospace and defense. It's essential to consult TE Connectivity's application notes and relevant industry standards (e.g., MIL-DTL-38999) for specific guidance on using this connector in high-reliability applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

174975-2 Overview

Use the download button to access the 174975-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17497, or try a keyword search, such as Combination Line Connectors
