1751516 - Phoenix Contact

Description: SPTA 1,5/ 6-3,81 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: SPTA 1,5/, pitch: 3.81 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 1, type of packaging:

Download 1751516 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1751516 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

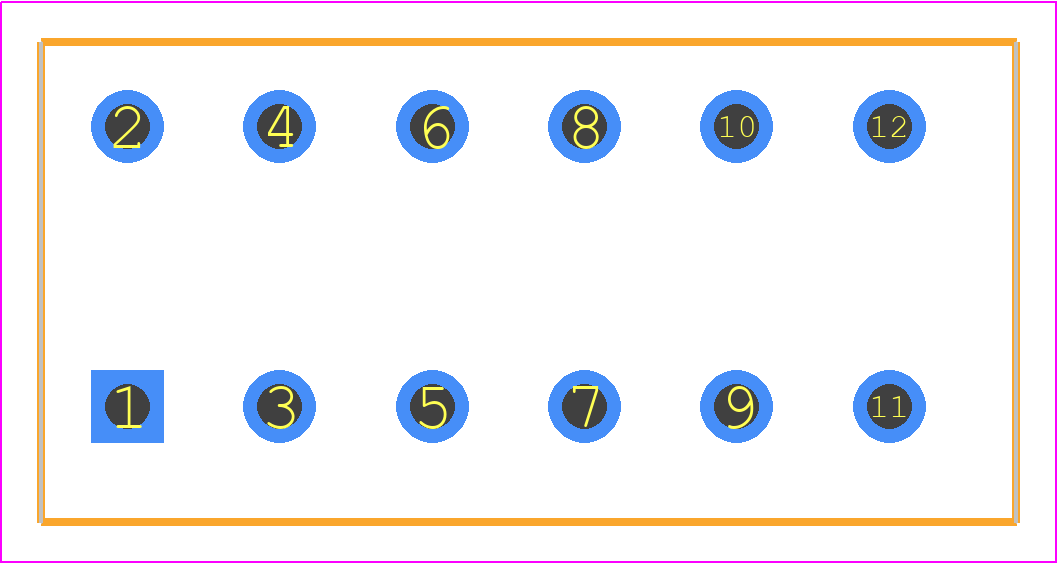

1751516 - Phoenix Contact PCB footprint - Other - Other - 1751516
click to zoom
3D Models
1751516 - Phoenix Contact - 3D model - Other - 1751516
click to zoom

1751516 Details

  • Manufacturer Part Number:

    1751516

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    PA, UL 94V0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    9 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1751516 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations for optimal results.
  • Yes, the 1751516 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1751516 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and manufacturer's recommendations for specific environmental conditions.
  • Yes, the 1751516 connector is designed to be compatible with other Phoenix Contact products, including PCB terminals and connectors, to provide a comprehensive connection solution.
  • The maximum current rating for the 1751516 connector is 12 A per pin, but it's essential to consult the datasheet and manufacturer's recommendations for specific applications and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1751516 Overview

Use the download button to access the 1751516 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17515, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
