1752298 - Phoenix Contact

Description: SPTA 1/10-5,0 - Printed circuit board terminal, nominal current: 9 A, rated voltage (III/2): 320 V, nominal cross section: 1 mm<sup>2</sup>, number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: SPTA 1/, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 65 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboa

Download 1752298 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1752298 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

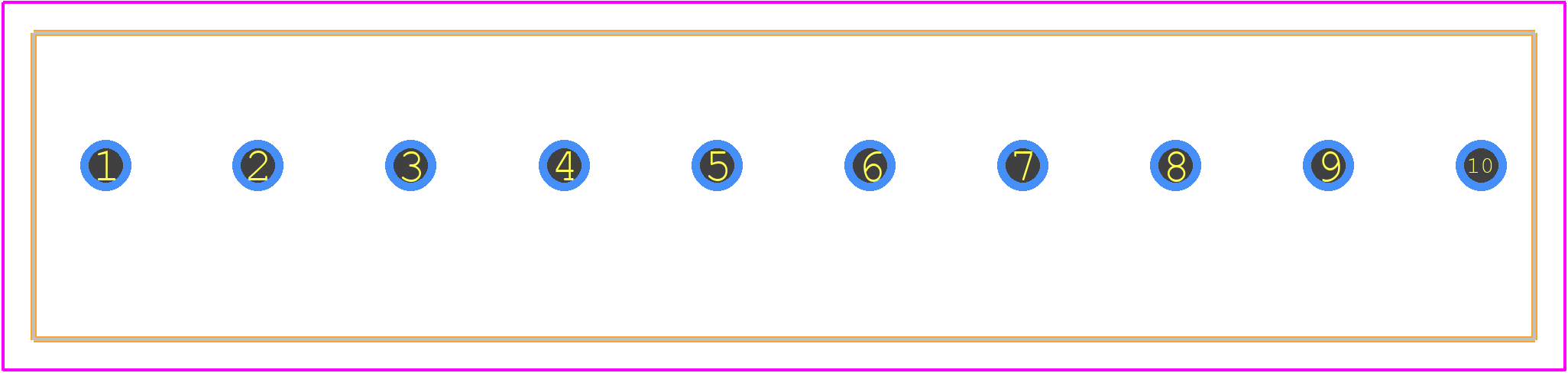

1752298 - Phoenix Contact PCB footprint - Other - Other - 1752298-2
click to zoom
3D Models
1752298 - Phoenix Contact - 3D model - Other - 1752298-2
click to zoom

1752298 Details

  • Manufacturer Part Number:

    1752298

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Additional Feature:

    PA, UL 94V0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    9 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1752298 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1752298 is -40°C to 125°C.
  • Yes, the 1752298 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1752298 is designed to withstand high vibrations and is suitable for use in applications with vibrations up to 10 g.
  • The maximum current rating of the 1752298 is 12 A per pin.
  • Yes, the 1752298 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
