STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER
Fastening Method:
CONNECTOR
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
10
Rated Current:
10 A
Rated Voltage:
300 V
Safety Approval:
CSA; EAC; UL
Terminal and Terminal Block Type:
STRIP TERMINAL BLOCK
1753062001 Frequently Asked Questions (FAQs)
The recommended torque for screw terminals is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
Yes, the 1753062001 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection. Consult the manufacturer's guidelines for specific vibration testing and ratings.
The 1753062001 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure that the connector is properly sealed and protected from moisture, dust, and other environmental factors that may affect its performance.
The 1753062001 connector is designed to be compatible with Weidmüller's products, but it may also be compatible with other manufacturers' products that meet the same industry standards. Consult the manufacturer's guidelines or contact their technical support to ensure compatibility before using the connector with other products.
The maximum operating temperature for the 1753062001 connector is typically between -40°C to 125°C, depending on the specific application and environmental conditions. Consult the manufacturer's guidelines for specific temperature ratings and derating factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1753062001 Overview

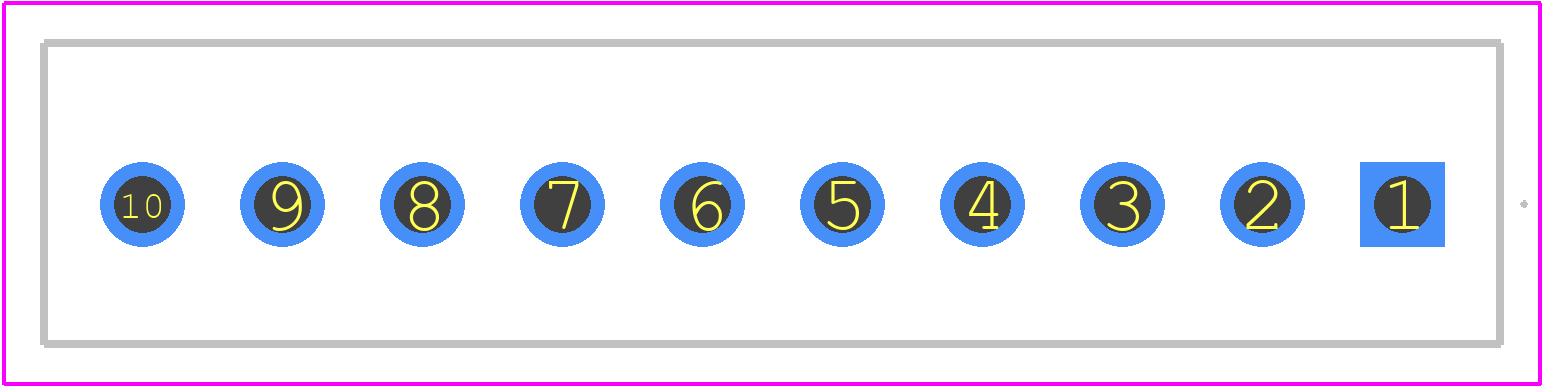

Use the download button to access the 1753062001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17530,
or try a keyword search, such as Terminals and Terminal Blocks
