The recommended torque for screw terminals is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
The 1753083001 connector is designed to withstand moderate vibrations, but it's essential to evaluate the specific vibration profile of your application. Weidmüller recommends consulting their technical support or performing vibration testing to ensure the connector meets your application's requirements.
The 1753083001 connector has a IP20 rating, which means it's designed for indoor use. However, Weidmüller offers other connectors with higher IP ratings (e.g., IP67) that can withstand outdoor or harsh environmental conditions. Consult their product catalog or technical support for suitable alternatives.
While the datasheet specifies recommended wire sizes, it's possible to use other wire sizes with the 1753083001 connector. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and don't compromise the connection's reliability. Consult Weidmüller's technical support for guidance on using non-standard wire sizes.
The 1753083001 connector meets various safety standards and certifications, such as UL, cUL, and CE. However, it's essential to ensure that your application meets the relevant safety standards and regulations. Consult Weidmüller's documentation and technical support for specific guidance on safety considerations and certifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1753083001 Overview

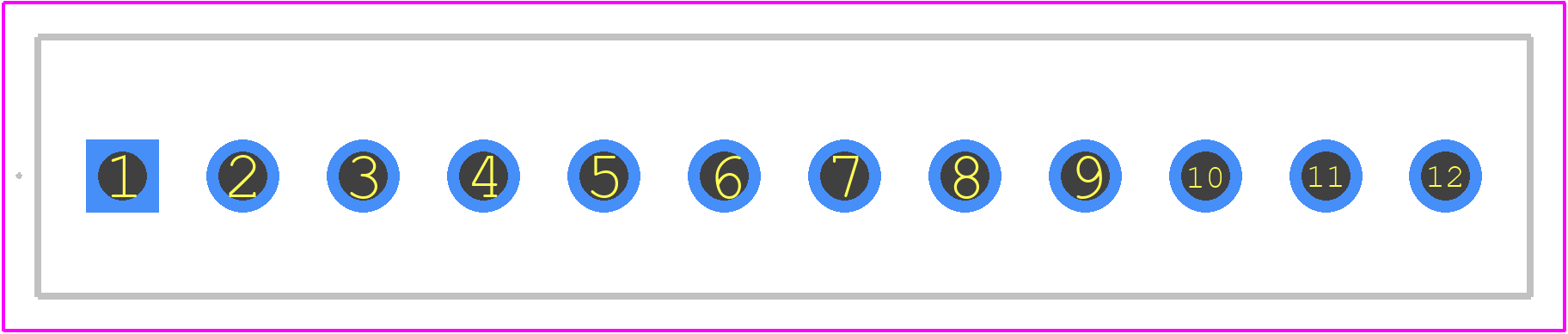

Use the download button to access the 1753083001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17530,
or try a keyword search, such as Terminals and Terminal Blocks
