1753576 - Phoenix Contact

Description: MSTBV 2,5/ 9-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MSTBV 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignmen

Download 1753576 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1753576 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

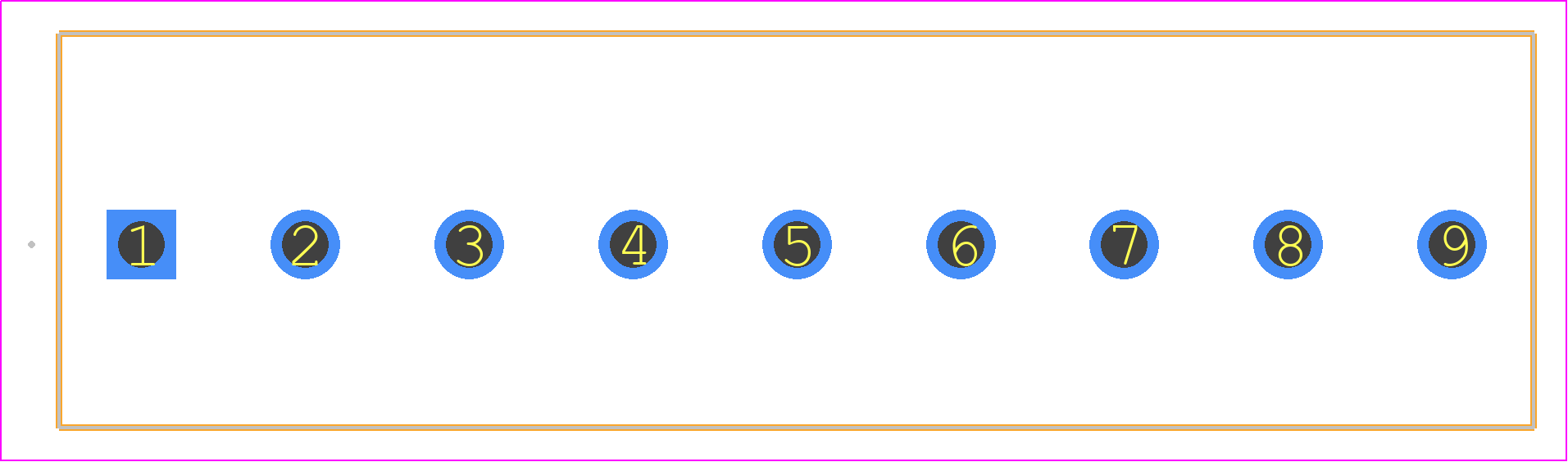

1753576 - Phoenix Contact PCB footprint - Other - Other - 1753576
click to zoom
3D Models
1753576 - Phoenix Contact - 3D model - Other - 1753576
click to zoom

1753576 Details

  • Manufacturer Part Number:

    1753576

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1753576 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1753576 is -40°C to 125°C.
  • Yes, the 1753576 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1753576 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider the 1753576-EX or consult with Phoenix Contact for a suitable alternative.
  • The 1753576 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1753576 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
