Part Image

175446-6 - TE Connectivity

Description: 0.40/0.70 Hybrid Housing,cap,r/a,DR,42w

Download 175446-6 Model

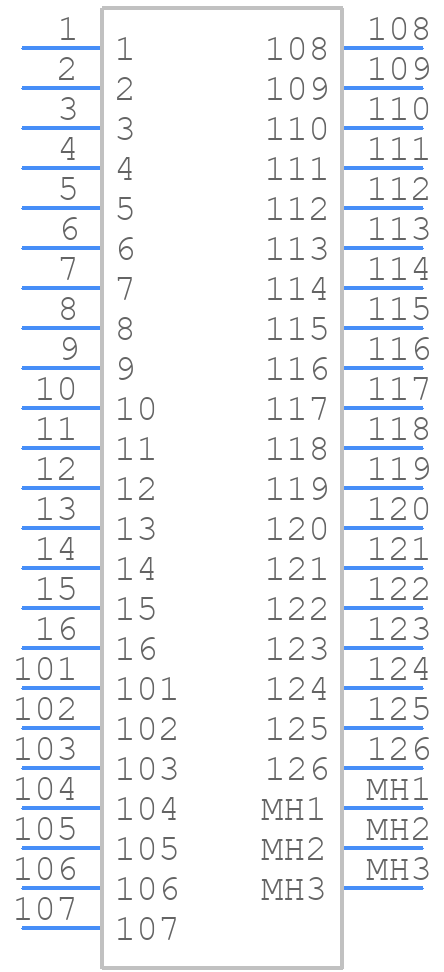

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

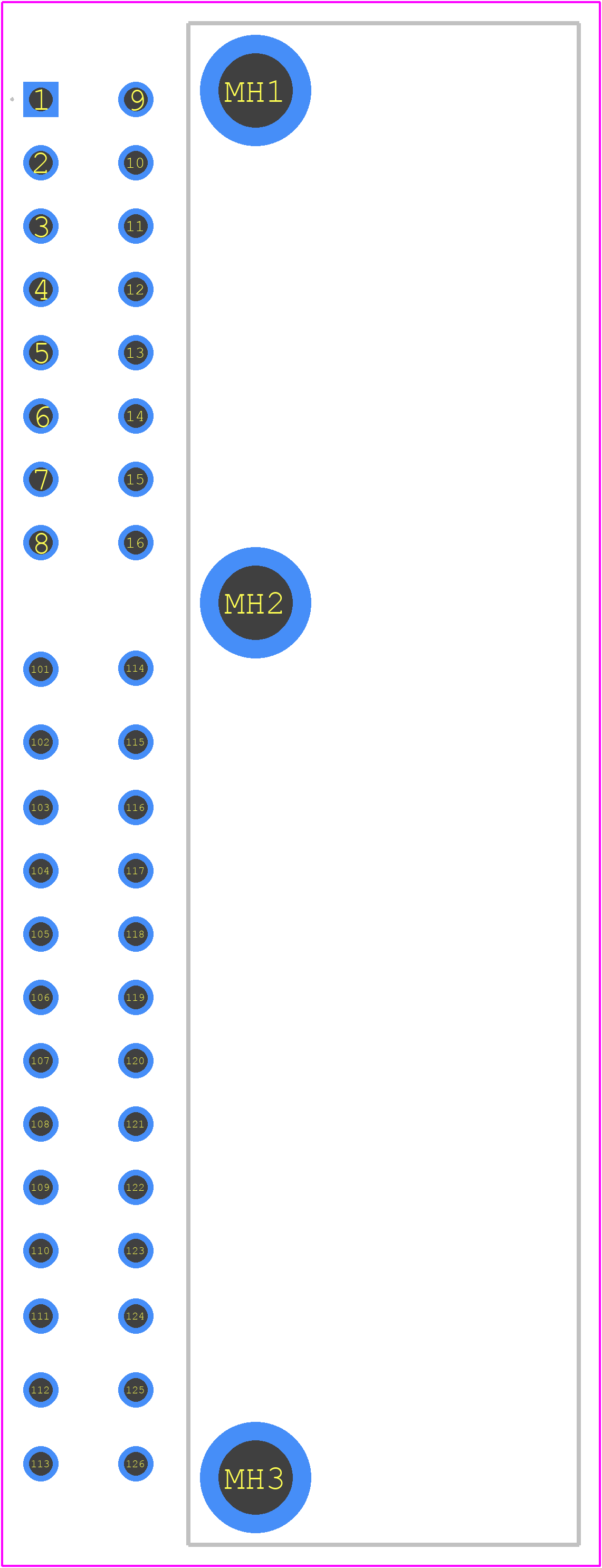

175446-6 - TE Connectivity PCB footprint - Other - Other - 175446-6-1
click to zoom
3D Models
175446-6 - TE Connectivity  - 3D model - Other - 175446-6-1
click to zoom

175446-6 Details

  • Manufacturer Part Number:

    175446-6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    14 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    42

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

175446-6 Overview

Use the download button to access the 175446-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17544, or try a keyword search, such as Combination Line Connectors
