175448-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Positions 54 | Number of Signal Positions 54 | Number of Rows 2 | PCB Mount Orientation Horizontal | Number of Sections 3 | Contact Features: Mating Tab Thickness .025 INCH | Contact Size 1mm | Mating Tab Width 1.8 MM | Mating Tab Width .071 INCH | Mating Tab Width .039 INCH | Contact Type Tab | Contact Mating Area Plating Material Tin | Mating Tab Width 1 MM | Contact Size 1.8mm | Mating Tab Thickness .64 MM | Dimensions: Connect

Download 175448-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
175448-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

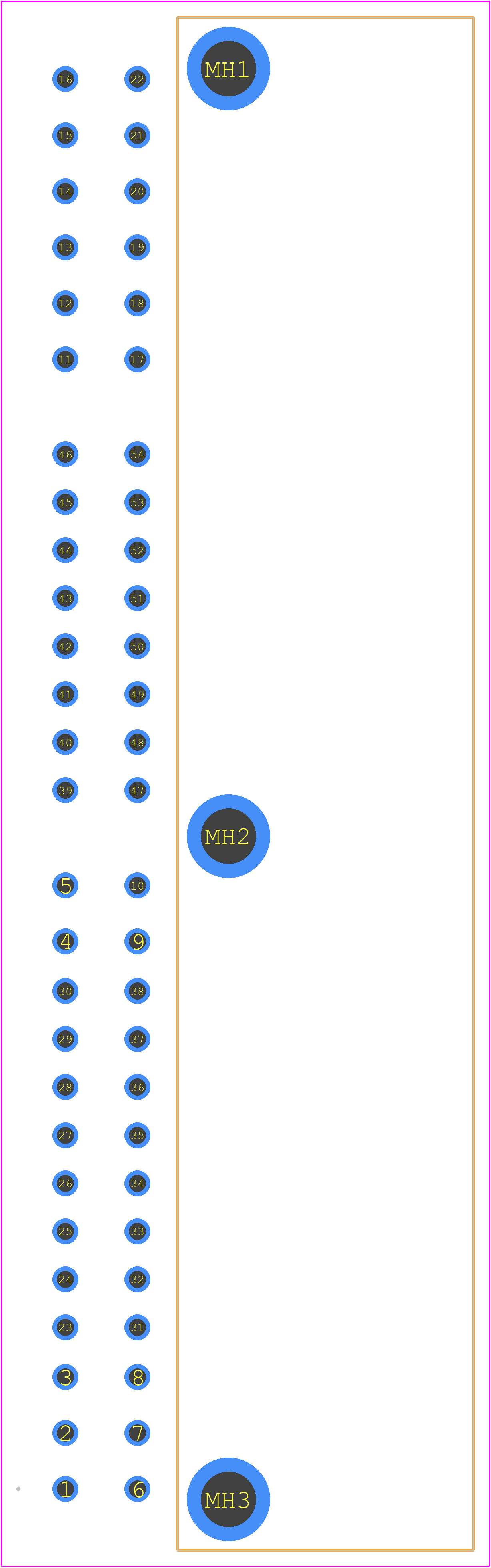

175448-6 - TE Connectivity PCB footprint - Other - Other - 175448-6-2
click to zoom
3D Models
175448-6 - TE Connectivity - 3D model - Other - 175448-6-2
click to zoom

175448-6 Details

  • Manufacturer Part Number:

    175448-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    3.772 inch

  • Body Length:

    1.016 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    54

175448-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 175448-6 connector.
  • Yes, the 175448-6 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The maximum operating temperature for the 175448-6 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The 175448-6 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper connector mating and sealing.
  • The recommended wire size for the 175448-6 connector is 24-18 AWG (0.25-1.5 mm²), and the recommended wire type is a stranded, tin-plated copper wire with a temperature rating of at least 105°C (221°F).
