1754517 - Phoenix Contact

Description: MSTB 2,5/ 6-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTB 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment

Download 1754517 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1754517 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

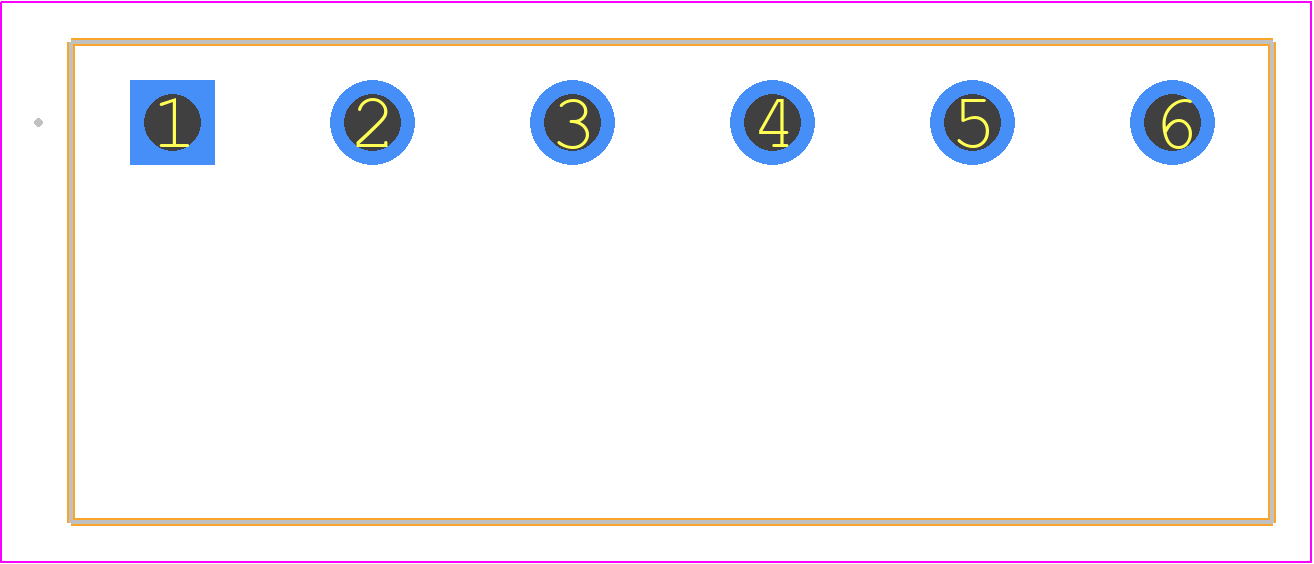

1754517 - Phoenix Contact PCB footprint - Other - Other - 1754517
click to zoom
3D Models
1754517 - Phoenix Contact - 3D model - Other - 1754517
click to zoom

1754517 Details

  • Manufacturer Part Number:

    1754517

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;CUL;EAC;UL;VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1754517 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1754517 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1754517 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider additional environmental factors, such as chemical exposure or UV radiation, when selecting the connector for a specific application.
  • The 1754517 connector is rated for currents up to 12 A per contact. However, it's crucial to consider the PCB's current-carrying capacity, wire gauge, and overall system design to ensure safe and reliable operation.
  • Yes, it's recommended to follow Phoenix Contact's guidelines for PCB layout, including keeping the connector's footprint clear of other components, using a sufficient solder mask, and ensuring proper thermal relief.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1754517 Overview

Use the download button to access the 1754517 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17545, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
