1754575 - Phoenix Contact

Description: MSTB 2,5/ 9-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MSTB 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment

Download 1754575 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1754575 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

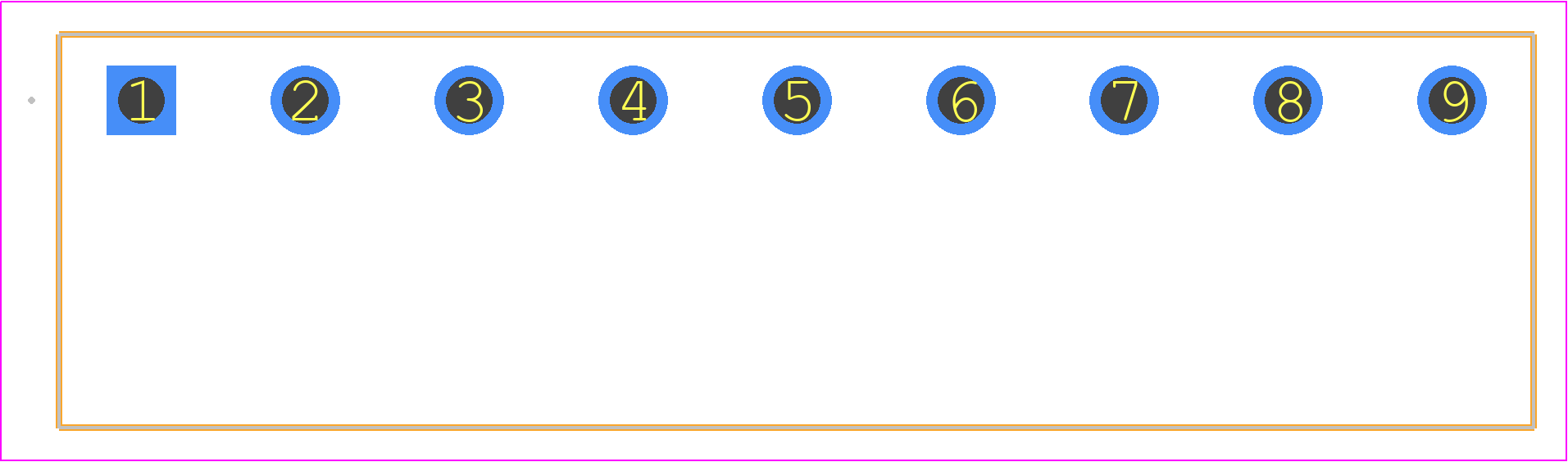

1754575 - Phoenix Contact PCB footprint - Other - Other - 1754575
click to zoom
3D Models
1754575 - Phoenix Contact - 3D model - Other - 1754575
click to zoom

1754575 Details

  • Manufacturer Part Number:

    1754575

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1754575 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1754575 is -40°C to 125°C.
  • Yes, the 1754575 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1754575 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1754575 is 2.5 mm² (AWG 14).
  • Yes, the 1754575 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
