1755503 - Phoenix Contact

Description: MSTBVA 2,5/10-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MSTBVA 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern ali

Download 1755503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1755503 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

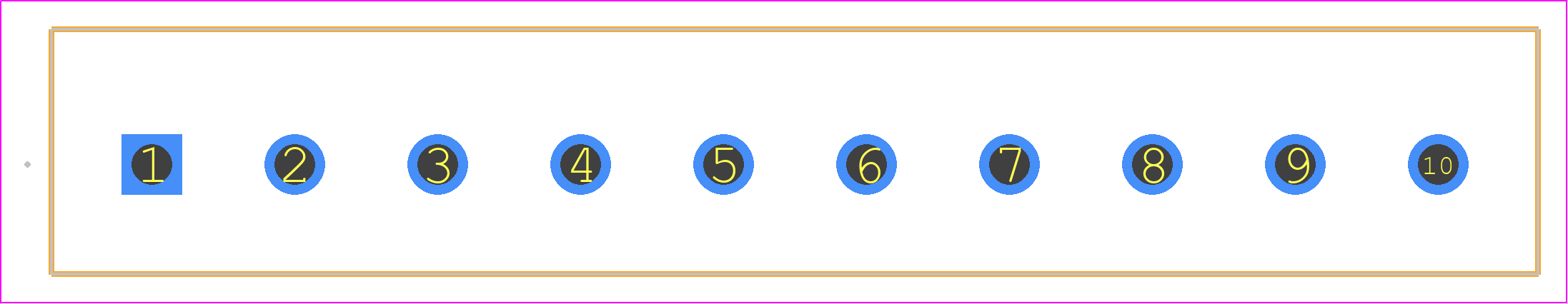

1755503 - Phoenix Contact PCB footprint - Other - Other - 1755503
click to zoom
3D Models
1755503 - Phoenix Contact - 3D model - Other - 1755503
click to zoom

1755503 Details

  • Manufacturer Part Number:

    1755503

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1755503 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1755503 connector is designed to withstand vibrations and is suitable for use in applications with high vibration levels, such as in industrial automation or transportation systems.
  • The 1755503 connector has a IP67 rating, making it suitable for outdoor use and protected against dust and water ingress.
  • Yes, the 1755503 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors, allowing for easy integration into existing systems.
  • The operating temperature range for the 1755503 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1755503 Overview

Use the download button to access the 1755503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17555, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
