1755642 - Phoenix Contact

Description: MSTBVA 2,5/16-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: MSTBVA 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern ali

Download 1755642 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1755642 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

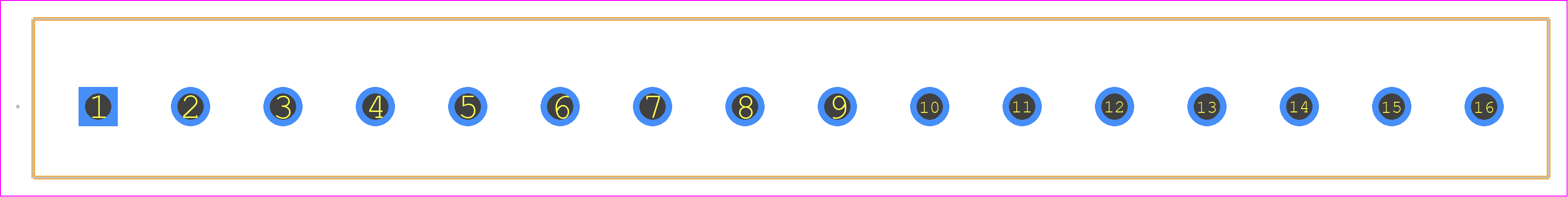

1755642 - Phoenix Contact PCB footprint - Other - Other - 1755642
click to zoom
3D Models
1755642 - Phoenix Contact - 3D model - Other - 1755642
click to zoom

1755642 Details

  • Manufacturer Part Number:

    1755642

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PBT, UL 94V-0, SAFETY APPROVAL VDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CCA; CSA; CUL; GOST; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1755642 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1755642 is -40°C to 125°C.
  • Yes, the 1755642 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • The 1755642 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider the Phoenix Contact 1755643, which has ATEX and IECEx certifications.
  • The 1755642 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1755642 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1755642 Overview

Use the download button to access the 1755642 schematic symbol, PCB footprint, and 3D model.
