1755820 - Phoenix Contact

Description: MSTBVA 2,5/11-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: MSTBVA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pat

Download 1755820 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1755820 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

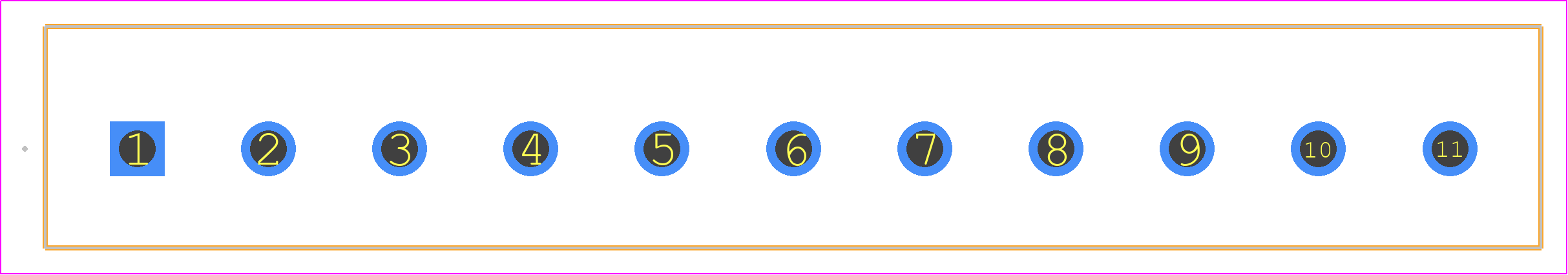

1755820 - Phoenix Contact PCB footprint - Other - Other - 1755820
click to zoom
3D Models
1755820 - Phoenix Contact - 3D model - Other - 1755820
click to zoom

1755820 Details

  • Manufacturer Part Number:

    1755820

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.75

  • Additional Feature:

    PBT, UL 94 V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL; VDE; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1755820 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1755820 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1755820 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection from moisture and contaminants to maintain the connector's performance and longevity.
  • Yes, the 1755820 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure compatibility with third-party components.
  • The 1755820 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1755820 Overview

Use the download button to access the 1755820 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17558, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
