175615-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Signal Positions 16 | Number of Sections 1 | Number of Positions 16 | Number of Rows 2 | PCB Mount Orientation Horizontal | Contact Features: Mating Tab Width 1 MM | Mating Tab Thickness .025 INCH | Mating Tab Thickness .64 MM | Contact Type Tab | Contact Mating Area Plating Material Tin | Mating Tab Width .039 INCH | Contact Size 1mm | Dimensions: Connector Width 1.378 INCH | Connector Length 22.5 MM | PCB Thickness (Recommended

Download 175615-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
175615-2 - TE Connectivity - PCB symbol
click to zoom

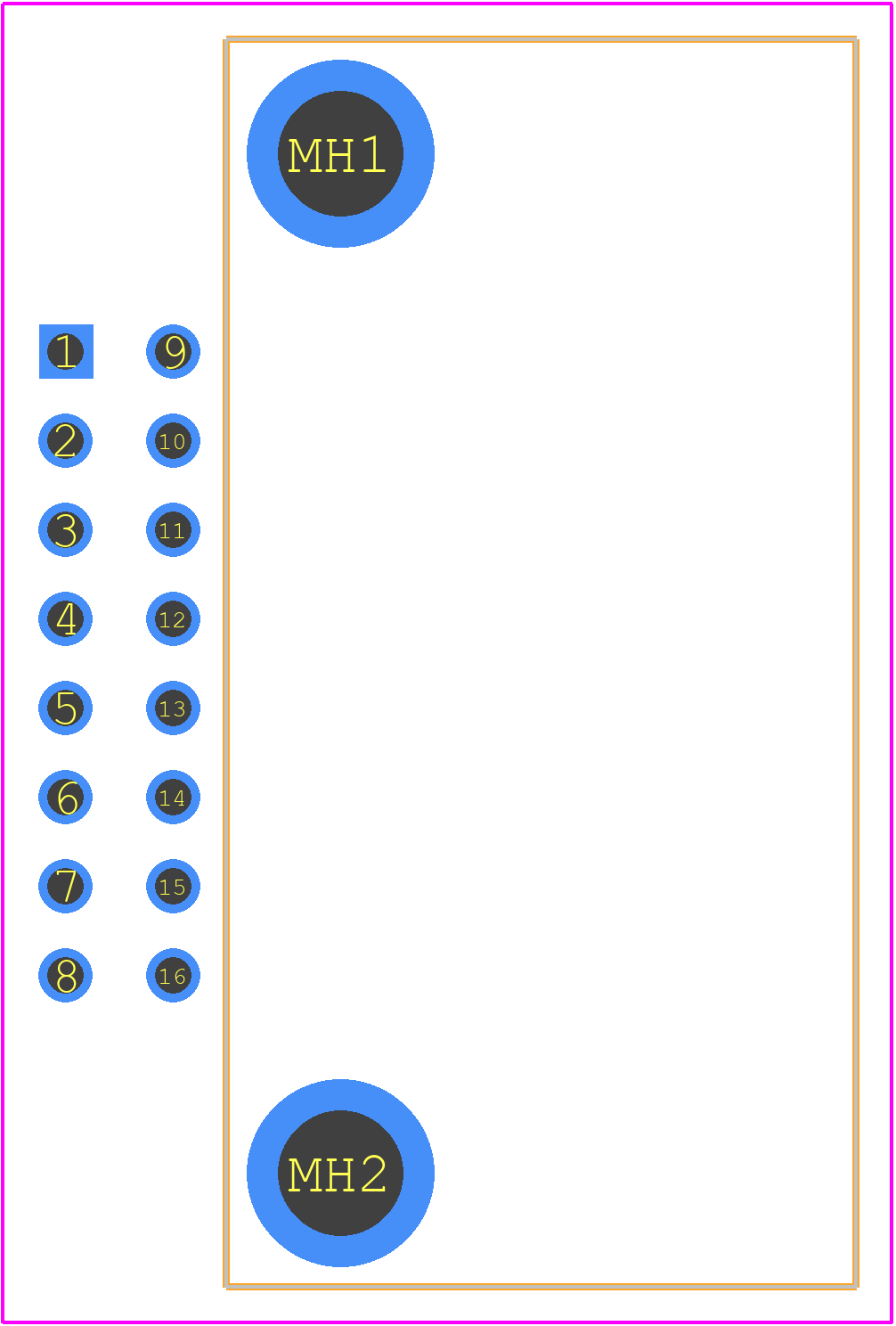

PCB Footprints
175615-2 - TE Connectivity PCB footprint - Other - Other - 175615-2-3
click to zoom
3D Models
175615-2 - TE Connectivity - 3D model - Other - 175615-2-3
click to zoom

175615-2 Details

  • Manufacturer Part Number:

    175615-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    1.378 inch

  • Body Length:

    0.886 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    175966-2

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

175615-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 175615-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 175615-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 175615-2 connector has a IP67 rating, making it suitable for use in harsh environments. However, it's crucial to follow proper sealing and installation procedures to maintain the IP67 rating. Consult TE Connectivity's environmental testing data and application notes for more information.
  • The recommended wire size for the 175615-2 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and temperature rating to ensure reliable performance. Consult TE Connectivity's application notes or contact their technical support for specific guidance.
