Part Image

1757404 - Phoenix Contact

Description: MSTBA 2,5/18-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 18, number of rows: 1, number of positions: 18, number of connections: 18, product range: MSTBA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patt

Download 1757404 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1757404 - Phoenix Contact - PCB symbol
click to zoom

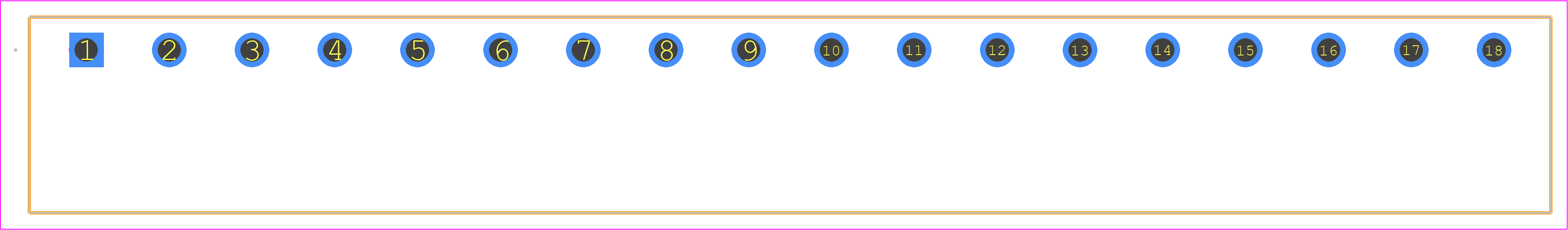

PCB Footprints
1757404 - Phoenix Contact PCB footprint - Other - Other - 1757404
click to zoom
3D Models
1757404 - Phoenix Contact - 3D model - Other - 1757404
click to zoom

1757404 Details

  • Manufacturer Part Number:

    1757404

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    18

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1757404 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1757404 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1757404 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions of your application and consult with Phoenix Contact for customized solutions.
  • The 1757404 connector is rated for currents up to 12 A per contact. However, it's crucial to consider the specific current requirements of your application and ensure the connector is used within its specified ratings.
  • Yes, Phoenix Contact recommends following their PCB layout guidelines to ensure proper connector seating and to prevent damage to the PCB or connector. Consult the Phoenix Contact documentation for specific layout recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1757404 Overview

Use the download button to access the 1757404 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17574, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
