1757527 - Phoenix Contact

Description: MSTBA 2,5/ 8-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MSTBA 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignme

Download 1757527 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1757527 - Phoenix Contact - PCB symbol
click to zoom

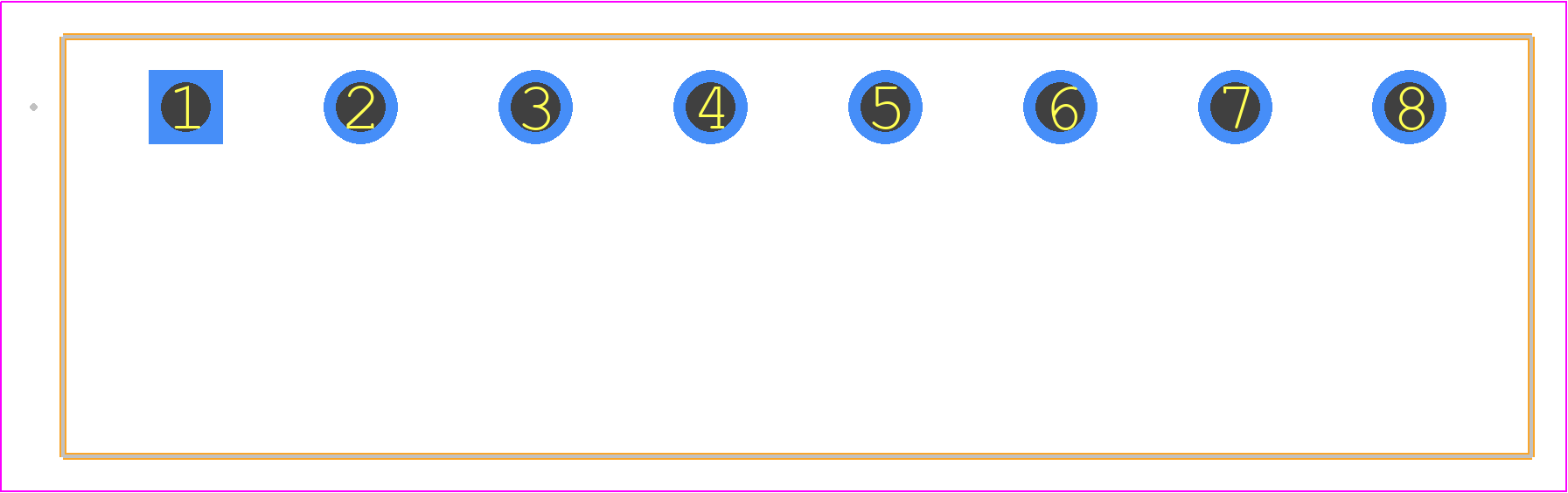

PCB Footprints
1757527 - Phoenix Contact PCB footprint - Other - Other - 1757527
click to zoom
3D Models
1757527 - Phoenix Contact - 3D model - Other - 1757527
click to zoom

1757527 Details

  • Manufacturer Part Number:

    1757527

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1757527 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
  • Yes, the 1757527 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1757527 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • The 1757527 connector is rated for up to 12 A per pin. For higher current applications, consider using a connector with a higher current rating or consulting with a Phoenix Contact representative for a custom solution.
  • Yes, ensure the PCB layout allows for a minimum of 1.5 mm clearance around the connector and follows the recommended footprint and pad layout provided in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1757527 Overview

Use the download button to access the 1757527 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17575, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
