175783-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Sections 1 | Number of Rows 1 | Number of Signal Positions 6 | Contact Features: Contact Size 1.8mm | Contact Mating Area Plating Material Tin | Dimensions: Profile Height from PCB 18.6 MM | PCB Thickness (Recommended) 1.6 MM | PCB Thickness (Recommended) .063 INCH | Connector Length .492 INCH | Connector Length 12.5 MM | Connector Width 34.8 MM | Profile Height from PCB .732 INCH | Connector Wi

Download 175783-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
175783-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

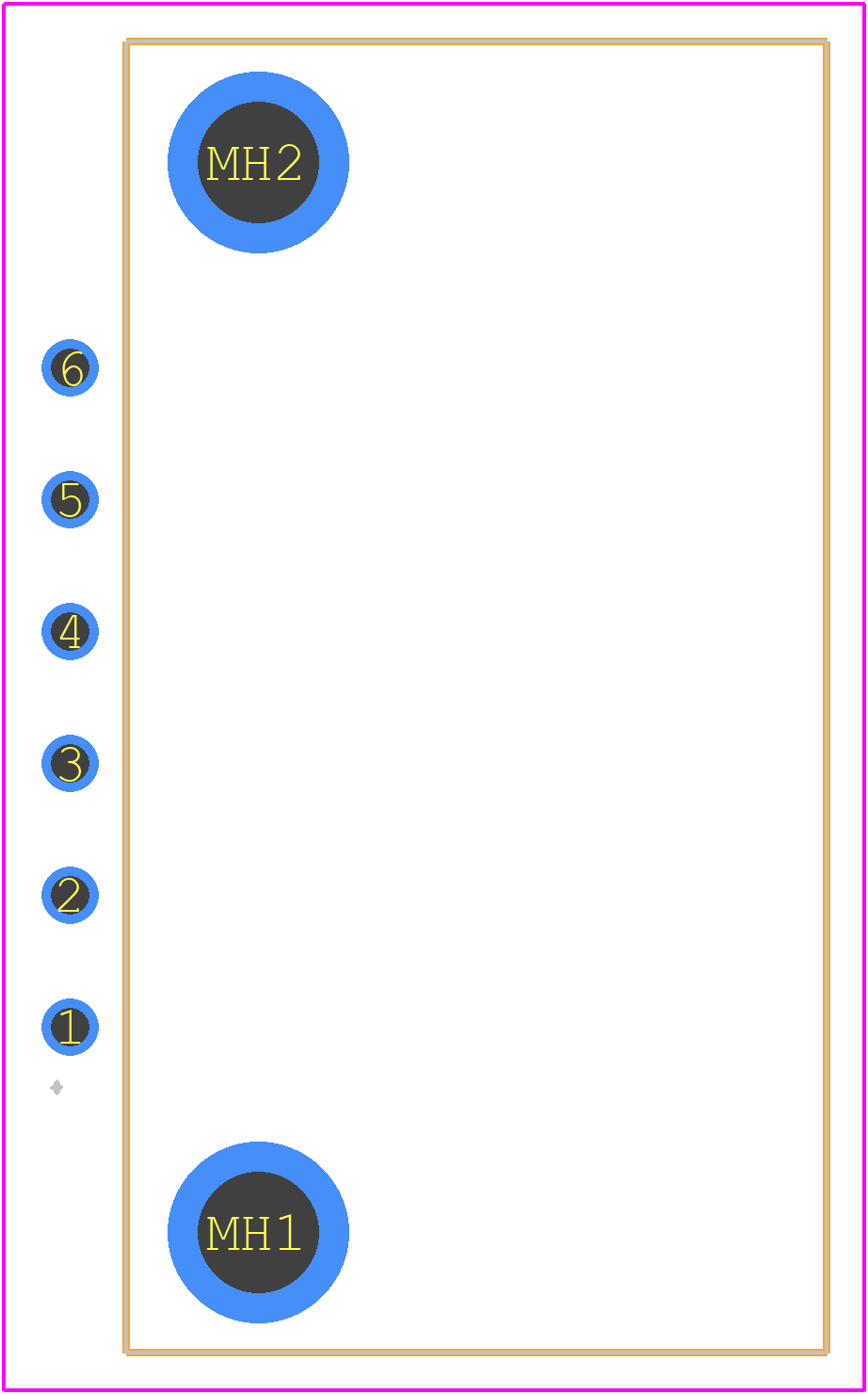

175783-2 - TE Connectivity PCB footprint - Other - Other - 175783-2-2
click to zoom
3D Models
175783-2 - TE Connectivity - 3D model - Other - 175783-2-2
click to zoom

175783-2 Details

  • Manufacturer Part Number:

    175783-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.37 inch

  • Body Depth:

    0.732 inch

  • Body Length:

    0.492 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94-HB

175783-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 175783-2 connector.
  • Yes, the 175783-2 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 175783-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • The 175783-2 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper sealing and protection of the connector.
  • The 175783-2 connector is designed for use with 20-24 AWG wire sizes, and it's recommended to use TE Connectivity's recommended wire types and sizes for optimal performance.
