1758092 - Phoenix Contact

Description: MSTBV 2,5/10-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MSTBV 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector patte

Download 1758092 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1758092 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

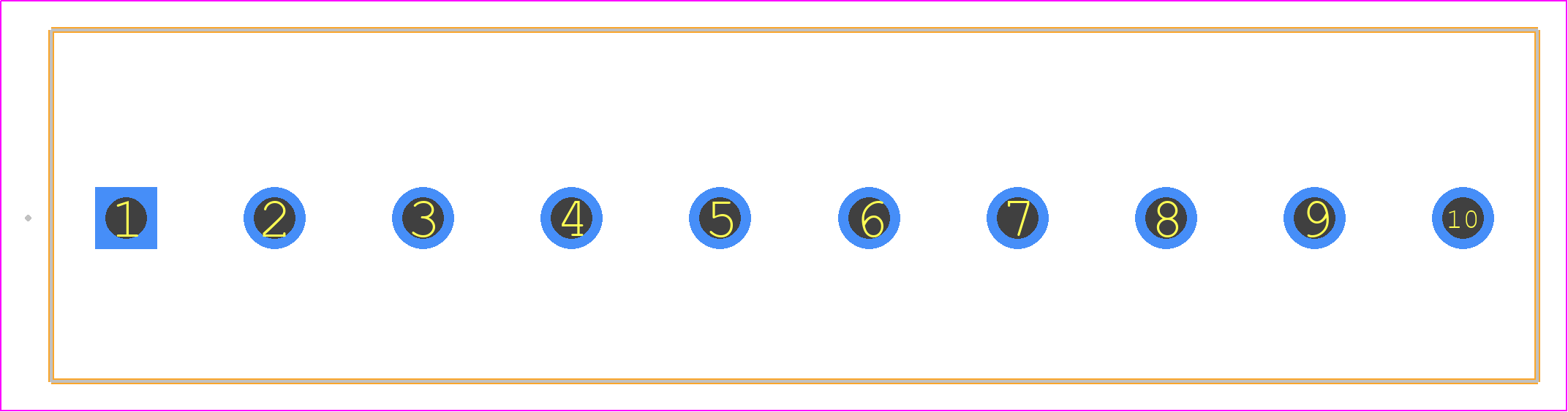

1758092 - Phoenix Contact PCB footprint - Other - Other - 1758092
click to zoom
3D Models
1758092 - Phoenix Contact - 3D model - Other - 1758092
click to zoom

1758092 Details

  • Manufacturer Part Number:

    1758092

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1758092 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1758092 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific applications.
  • The 1758092 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and perform additional testing for specific environmental conditions.
  • While it's technically possible, using a different wire gauge may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range of 0.5 mm² to 2.5 mm² for optimal results.
  • Yes, it's recommended to follow the recommended PCB layout guidelines provided by Phoenix Contact, including keeping the connector at least 2 mm away from the PCB edge and ensuring proper clearance around the connector.
