1758131 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to follow the manufacturer's guidelines to avoid damaging the connector or PCB.
• Can I use this connector in high-vibration or high-shock environments?
  Yes, the 1758131 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to prevent damage. Phoenix Contact recommends following the IEC 61373 standard for vibration testing and the IEC 61373-1 standard for shock testing.
• Is the connector suitable for use in humid or wet environments?
  The 1758131 connector has a IP20 rating, which means it's protected against solid objects larger than 12.5 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating, such as IP67 or IP69K, or applying additional sealing measures.
• Can I use this connector with wire sizes other than the recommended AWG 24-18?
  While the datasheet recommends AWG 24-18 wire sizes, the connector can accommodate other wire sizes within the specified range. However, using smaller or larger wires may affect the connector's performance and reliability. It's essential to consult with Phoenix Contact or a qualified engineer to ensure compatibility and proper termination.

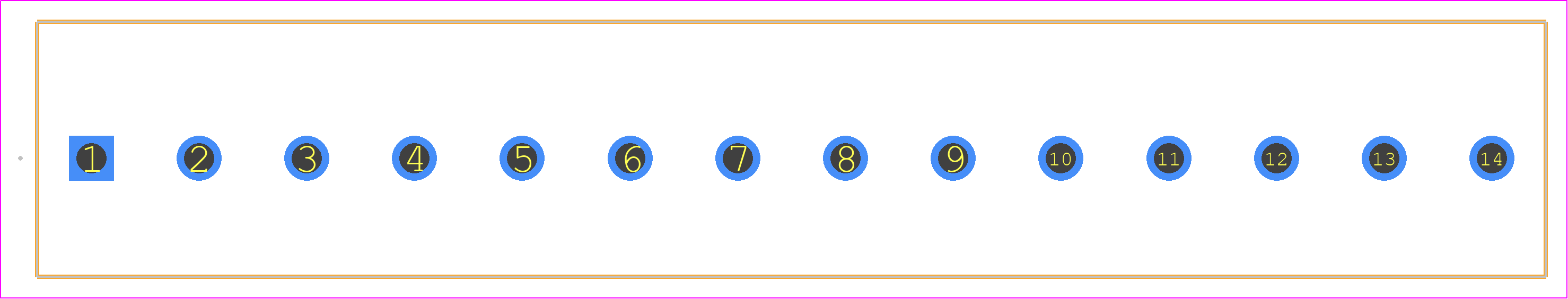

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides guidelines for PCB layout and footprint design. Ensure the PCB layout follows the recommended dimensions and keep-out zones to prevent interference with the connector's components and ensure reliable operation.
