175975-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Sections 1 | Number of Positions 20 | Number of Rows 2 | Number of Signal Positions 20 | Contact Features: Mating Tab Width .039 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Mating Tab Width 1 MM | Contact Type Tab | Mating Tab Thickness .64 MM | Contact Size 1mm | Dimensions: PCB Thickness (Recommended) 1.6 MM | PCB Thickness (Recommended) .063 INCH | Conne

Download 175975-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

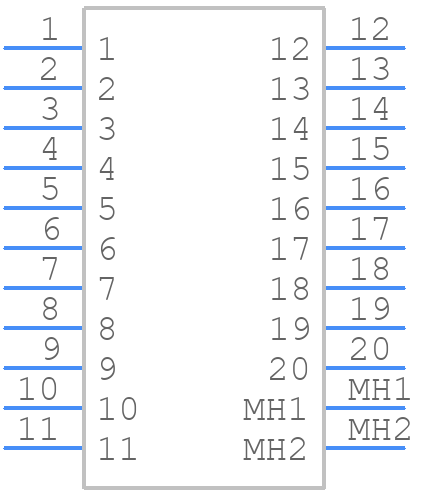

Symbol
175975-2 - TE Connectivity - PCB symbol
click to zoom

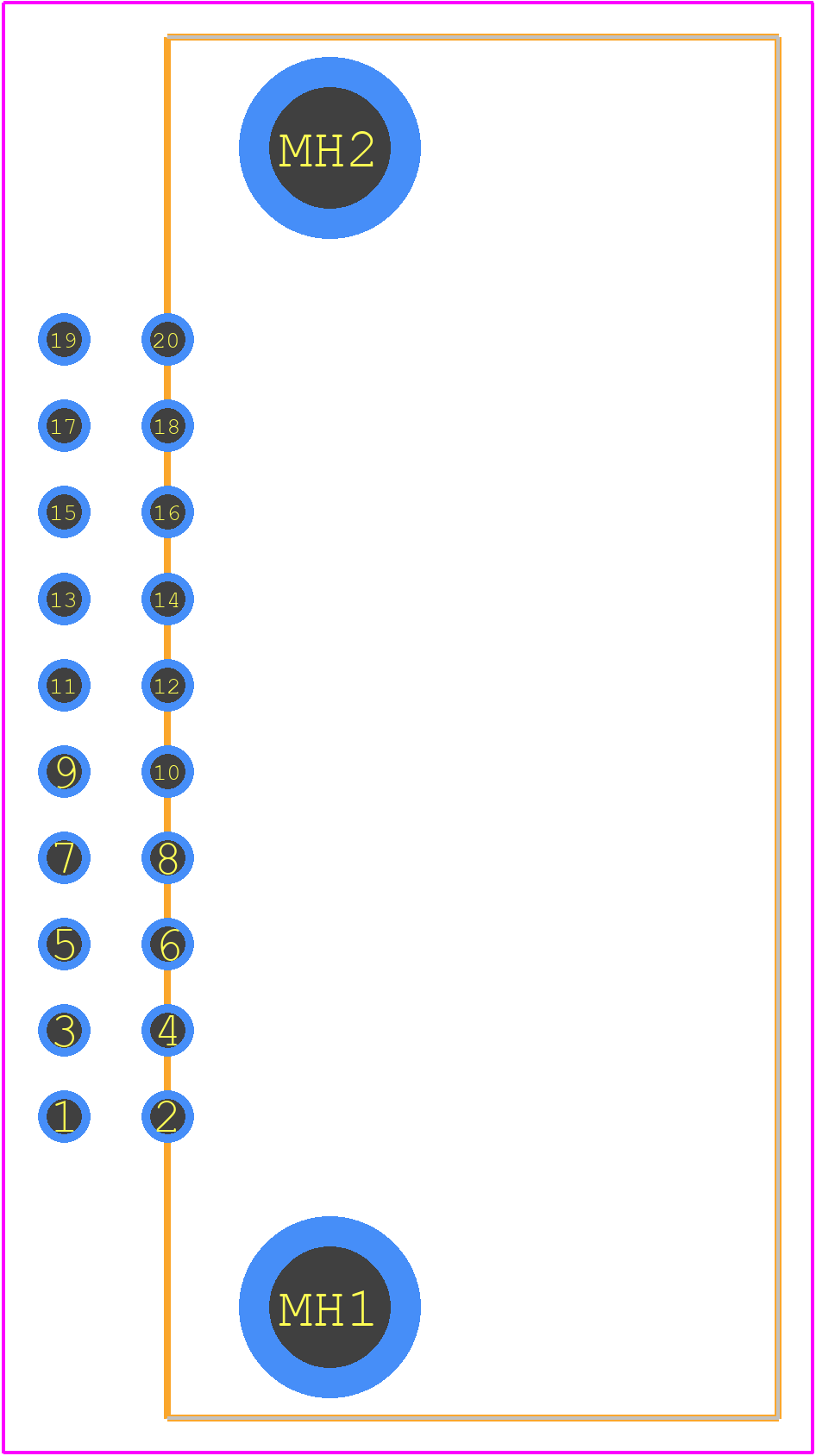

PCB Footprints
175975-2 - TE Connectivity PCB footprint - Other - Other - 175975-2-1
click to zoom
3D Models
175975-2 - TE Connectivity - 3D model - Other - 175975-2-1
click to zoom

175975-2 Details

  • Manufacturer Part Number:

    175975-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    1.575 inch

  • Body Length:

    0.886 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    175967-2

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

175975-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 175975-2 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific vibration requirements.
  • The operating temperature range for the 175975-2 connector is -40°C to 125°C (-40°F to 257°F).
  • The 175975-2 connector is designed to be resistant to harsh environments, but it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific environmental requirements.
  • While the 175975-2 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with TE Connectivity's application engineers to ensure the connector meets the specific wire size requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

175975-2 Overview

Use the download button to access the 175975-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17597, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
