17610042102 - HARTING

Description: HM Power male angled 4pin, MMMM

Download 17610042102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17610042102 - HARTING - PCB symbol
click to zoom
PCB Footprints

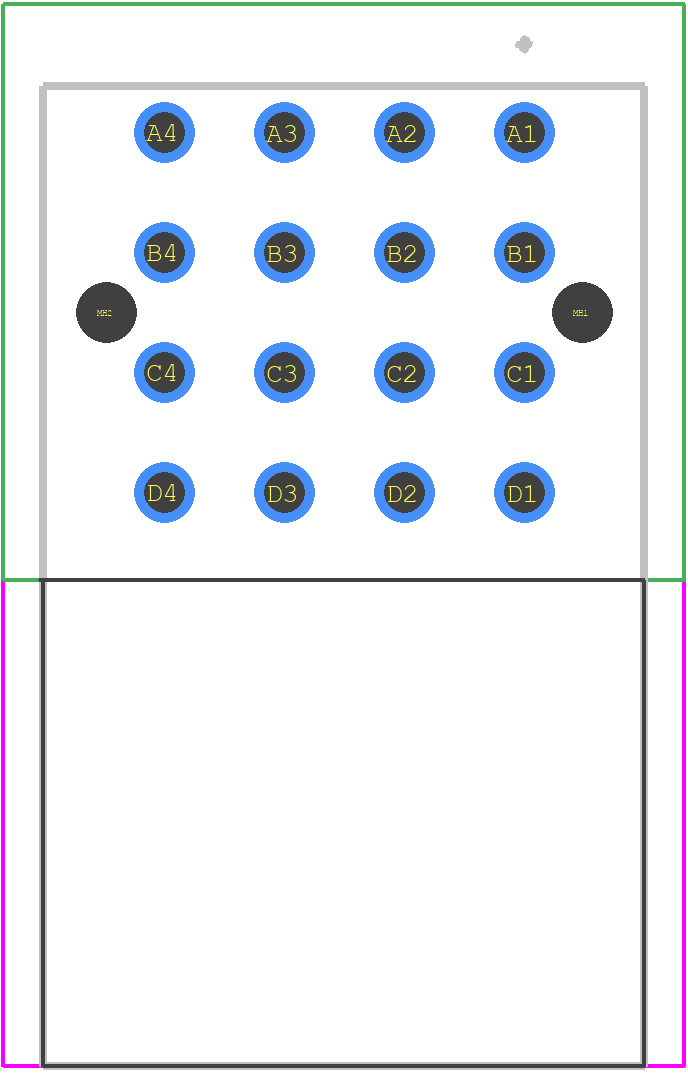

17610042102 - HARTING PCB footprint - Other - Other - 17610042102-3
click to zoom
3D Models
17610042102 - HARTING - 3D model - Other - 17610042102-3
click to zoom

17610042102 Details

  • Manufacturer Part Number:

    17610042102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

17610042102 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 17610042102 connector is -40°C to 125°C, as per the IEC 61076-2-101 standard.
  • Yes, the 17610042102 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 17610042102 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and HARTING's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The 17610042102 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications where frequent mating and unmating occur.
  • Yes, the 17610042102 connector is part of the HARTING Han series, which is designed to be compatible with other Han series connectors. However, it's essential to verify compatibility with specific connectors and applications to ensure proper mating and performance.
