17610042801 - HARTING

Description: HM Power male angled 4pin, LMSM, THR/SMC

Download 17610042801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17610042801 - HARTING - PCB symbol
click to zoom
PCB Footprints

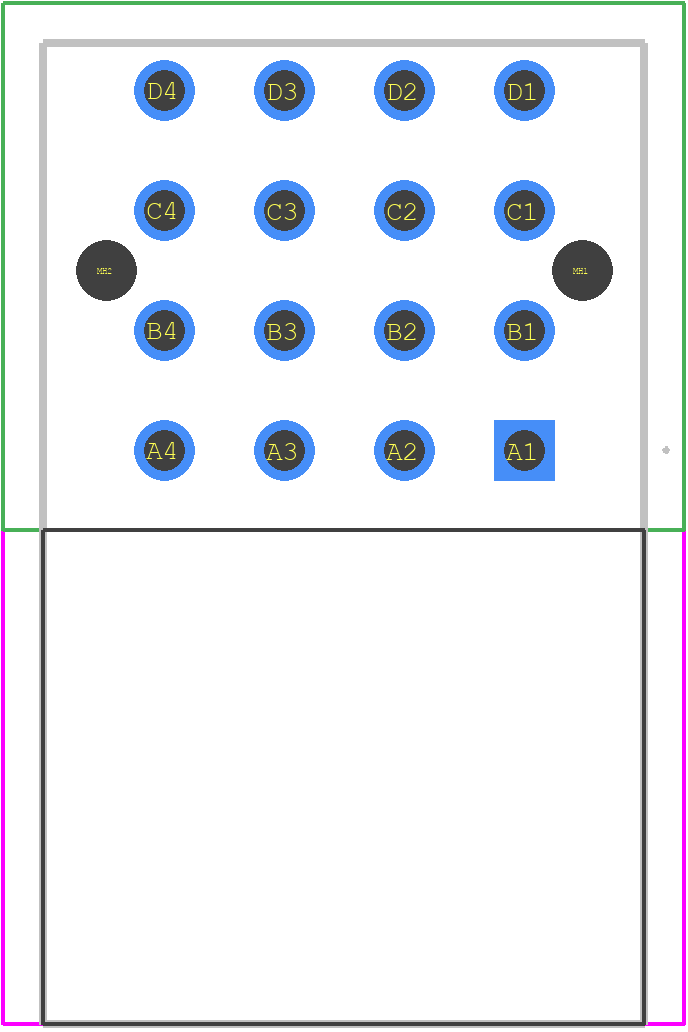

17610042801 - HARTING PCB footprint - Other - Other - 17610042801-4
click to zoom
3D Models
17610042801 - HARTING - 3D model - Other - 17610042801-4
click to zoom

17610042801 Details

  • Manufacturer Part Number:

    17610042801

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7.6

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

17610042801 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 17610042801 connector is -40°C to 125°C.
  • Yes, the 17610042801 connector is designed to withstand high-vibration environments, making it suitable for applications in transportation, industrial, and other demanding industries.
  • Yes, the 17610042801 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and manufacturer's recommendations for specific environmental conditions.
  • The mating cycle life of the 17610042801 connector is typically around 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 17610042801 connector is designed to be compatible with other HARTING connectors within the same product family or series. However, it's essential to consult the datasheet and manufacturer's recommendations for specific compatibility information.
