The recommended torque for tightening the 17610042802 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 17610042802 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
Yes, the 17610042802 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
Yes, the 17610042802 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
The maximum current rating of the 17610042802 connector is 40 A per contact, depending on the specific application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17610042802 Overview

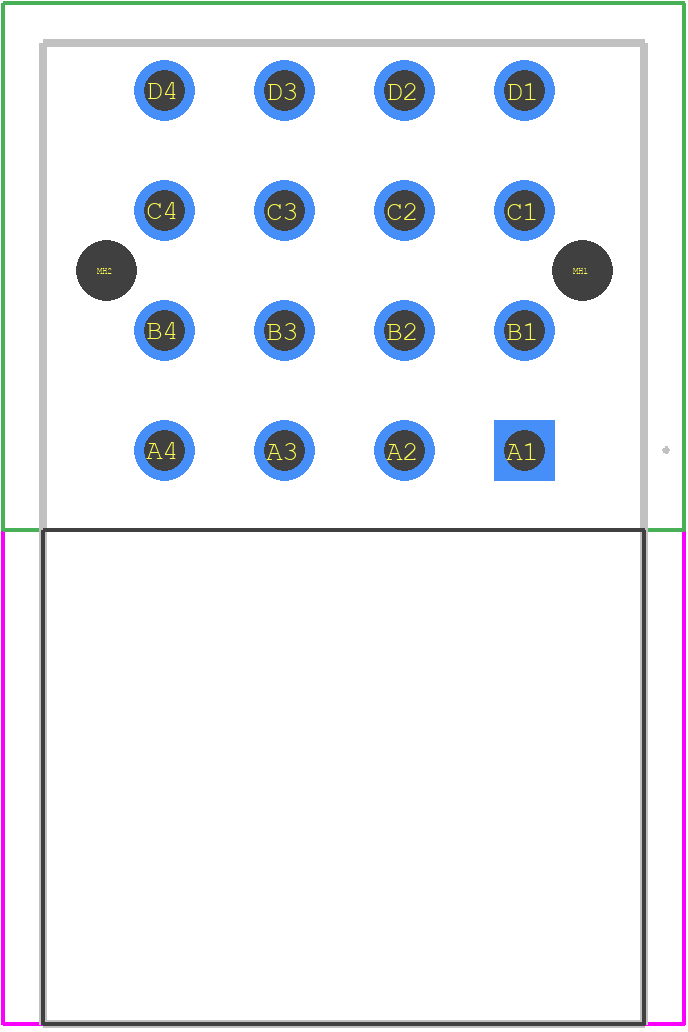

Use the download button to access the 17610042802 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17610,
or try a keyword search, such as Headers and Edge Type Connectors
