Part Image

1761022001 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 8, THT/THR solder connection, Box

Download 1761022001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1761022001 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

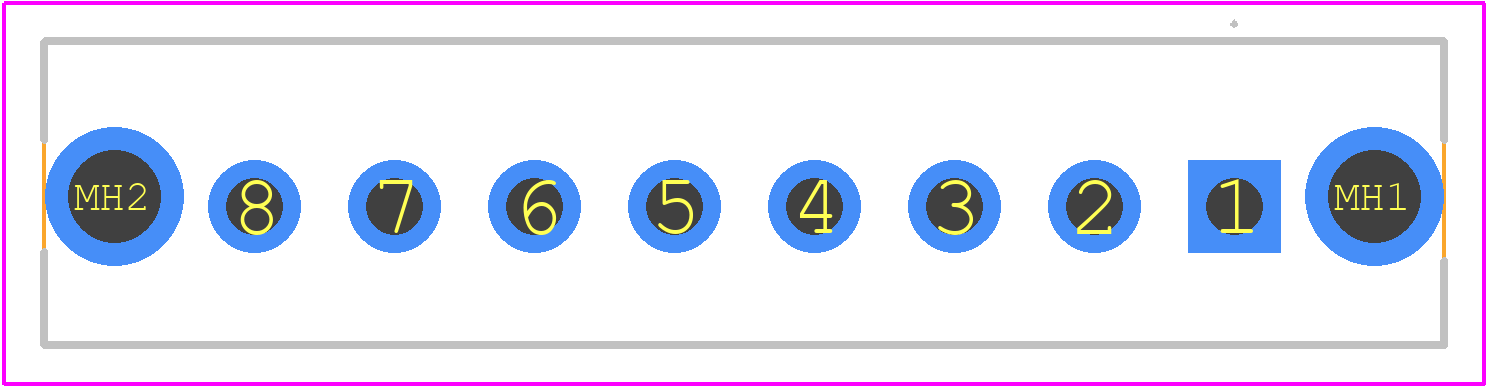

1761022001 - Weidmüller PCB footprint - Other - Other - 1761022001-3
click to zoom
3D Models
1761022001 - Weidmüller - 3D model - Other - 1761022001-3
click to zoom

1761022001 Details

  • Manufacturer Part Number:

    1761022001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1761022001 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1021022001 is -40°C to 85°C.
  • Yes, the 1021022001 is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • The maximum cable diameter that can be connected to the 1021022001 is 10 mm.
  • Yes, the 1021022001 is certified for use in hazardous locations, such as explosive atmospheres, and meets the requirements of the ATEX and IECEx directives.
  • Yes, the 1021022001 can be mounted on a DIN rail using the Weidmüller DIN rail adapter, which is sold separately.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1761022001 Overview

Use the download button to access the 1761022001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17610, or try a keyword search, such as Terminals and Terminal Blocks
