1761028-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Shell Plating Finish Bright | Assembly Process Feature Material Copper Alloy | Shell Plating Material Tin | Connector Profile Standard | Configuration Features: Number of Positions 40 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: PCB Contact Termination Area Plating Material Tin over Nickel | Contact Mating Area Plating Material Thickness 30 MICIN | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Gold | Co

Download 1761028-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

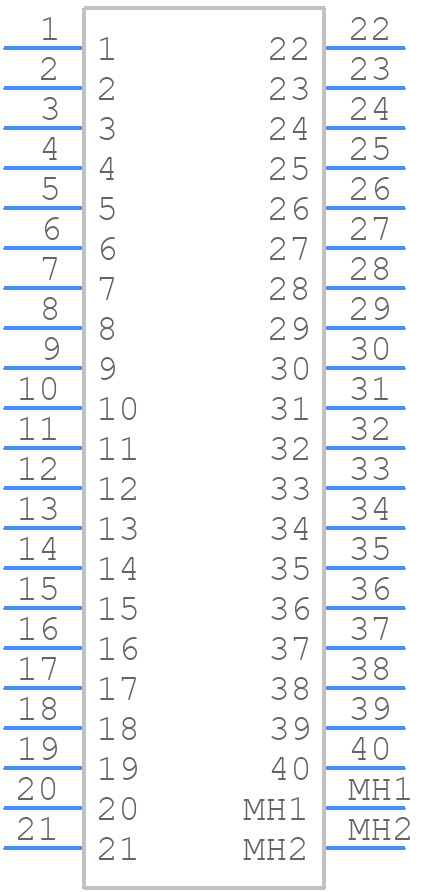

Symbol
1761028-2 - TE Connectivity - PCB symbol
click to zoom

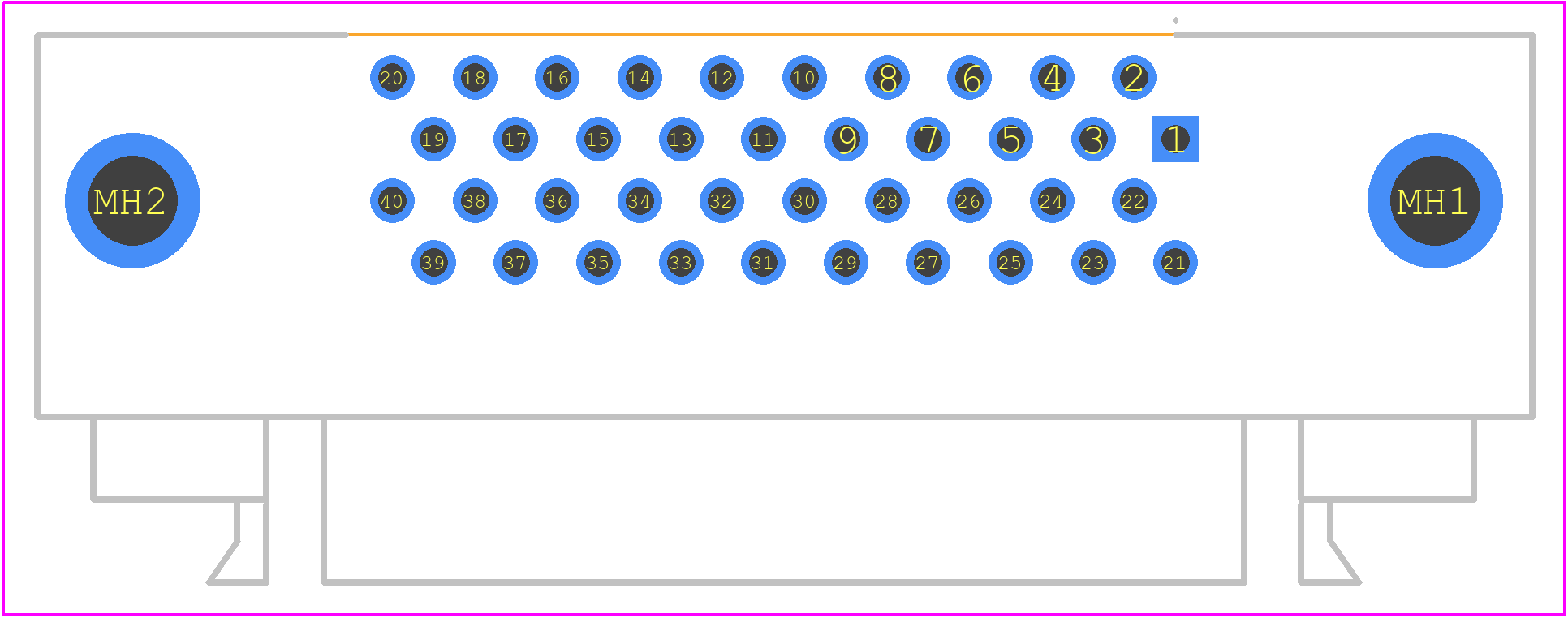

PCB Footprints
1761028-2 - TE Connectivity PCB footprint - Other - Other - 1761028-2-2
click to zoom
3D Models
1761028-2 - TE Connectivity - 3D model - Other - 1761028-2-2
click to zoom

1761028-2 Details

  • Manufacturer Part Number:

    1761028-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    AMPLIMITE

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.406 inch

  • Body Depth:

    0.463 inch

  • Body Length:

    1.815 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #2-56

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

1761028-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1761028-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 1761028-2 connector is designed for general-purpose applications and may not be suitable for extreme environmental conditions. If you need to use the connector in harsh environments, consider using a more specialized connector or consulting with TE Connectivity's technical support team for guidance on environmental ratings and potential modifications.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines to ensure proper connector mating and to prevent damage to the connector or PCB. Key considerations include maintaining a minimum clearance of 1.5 mm around the connector, using a solder mask to prevent solder bridging, and ensuring the PCB material can withstand the connector's operating temperature range.
