176122-6 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Configuration Features: Number of Positions 64 | PCB Mount Orientation Right Angle | Number of Rows 4 | Contact Features: Contact Type Pin | Contact Mating Area Plating Material Tin (Sn) | Housing Features: Centerline (Pitch) .118 INCH | Centerline (Pitch) 3.5 MM | Centerline (Pitch) .137 INCH | Centerline (Pitch) 3 MM | Mechanical Attachment: PCB Mount Alignment With | Connector Mounting Type Board Mount | Mating Alignment With | Packaging Features: Packaging Met

Download 176122-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
176122-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

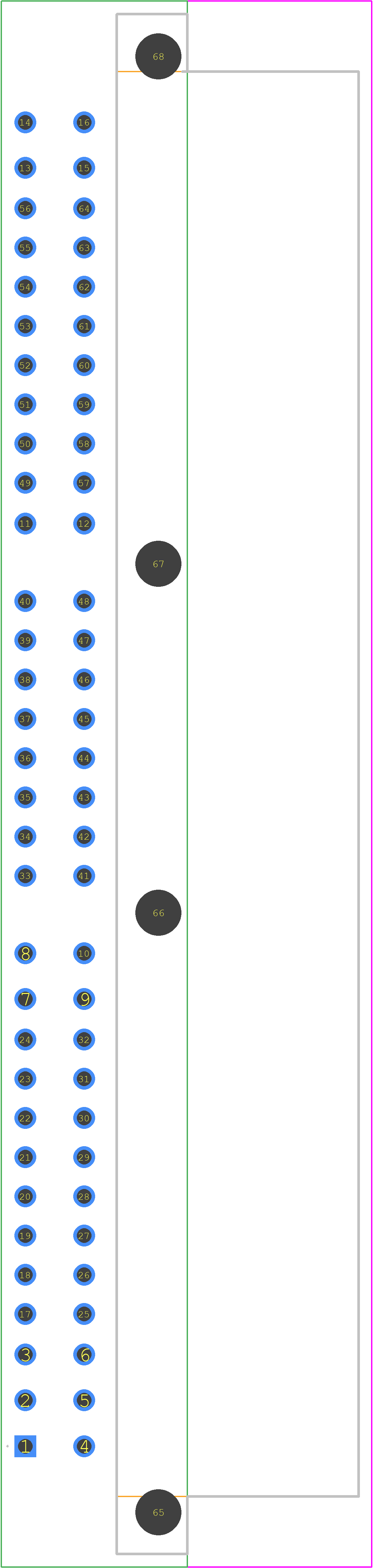

176122-6 - TE Connectivity PCB footprint - Other - Other - 176122-6-3
click to zoom
3D Models
176122-6 - TE Connectivity - 3D model - Other - 176122-6-3
click to zoom

176122-6 Details

  • Manufacturer Part Number:

    176122-6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    MULTILOCK

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

176122-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 176122-6 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 176122-6 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the rating. Additionally, the connector may require additional protection or coatings for extreme environmental conditions.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 176122-6 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during installation.
  • Yes, it's essential to follow proper PCB layout guidelines for the 176122-6 connector. Ensure the PCB footprint matches the connector's dimensions, and provide adequate clearance around the connector to prevent interference with other components.
