1761426-3 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Signal Positions 20 | Number of Power Positions 6 | PCB Mount Orientation Vertical | Number of Positions 26 | Keying & Polarized Position Locations 0 | Number of Dual Positions 3 | Contact Features: PCB Contact Termination Area Plating Material Thickness 2.54 MICM | Contact Mating Area Plating Material Thickness .38 MICM | PCB Contact Termination Area Plating Material Thickness 100 MICIN | PCB Contact Termination Area Plating Mat

Download 1761426-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

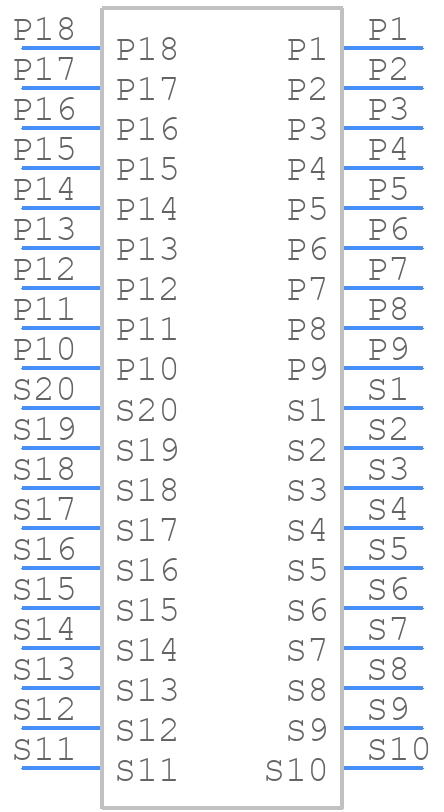

Symbol
1761426-3 - TE Connectivity - PCB symbol
click to zoom

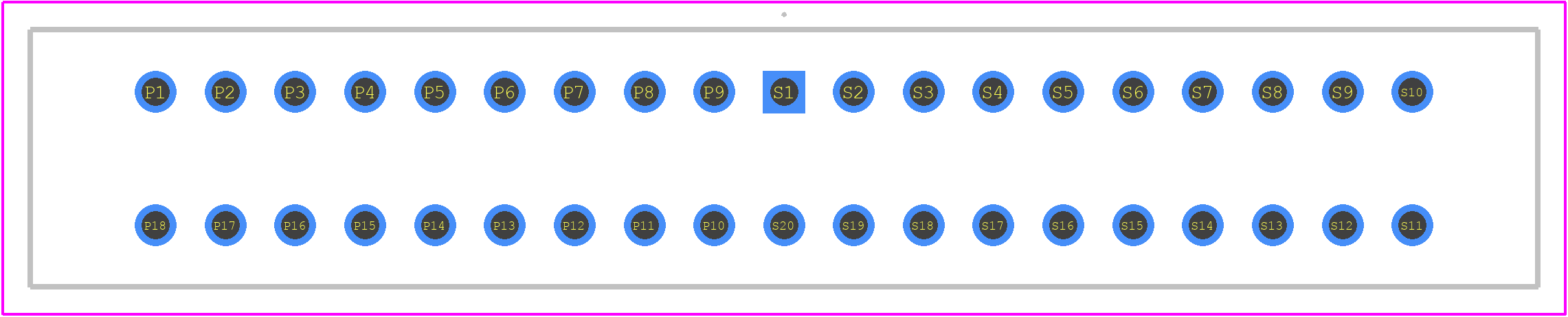

PCB Footprints
1761426-3 - TE Connectivity PCB footprint - Other - Other - 1761426-3-10
click to zoom
3D Models
1761426-3 - TE Connectivity - 3D model - Other - 1761426-3-10
click to zoom

1761426-3 Details

  • Manufacturer Part Number:

    1761426-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 7.62 MM

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Depth:

    0.61 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Row Spacing:

    0.191 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    400 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    7.62 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

1761426-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1761426-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • While the datasheet specifies AWG 24-20 wire sizes, the connector can accommodate other wire sizes with some adjustments. However, it's essential to consult with TE Connectivity's technical support or a qualified engineer to ensure proper wire termination and to avoid any potential issues.
  • The 1761426-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1761426-3 connector has a sealed design that provides protection against moisture and humidity. However, it's still important to consult with TE Connectivity's technical support or a qualified engineer to determine the connector's suitability for specific harsh environments or exposure to chemicals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1761426-3 Overview

Use the download button to access the 1761426-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17614, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
