1761602001 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 8, THT/THR solder connection, Box

Download 1761602001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1761602001 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

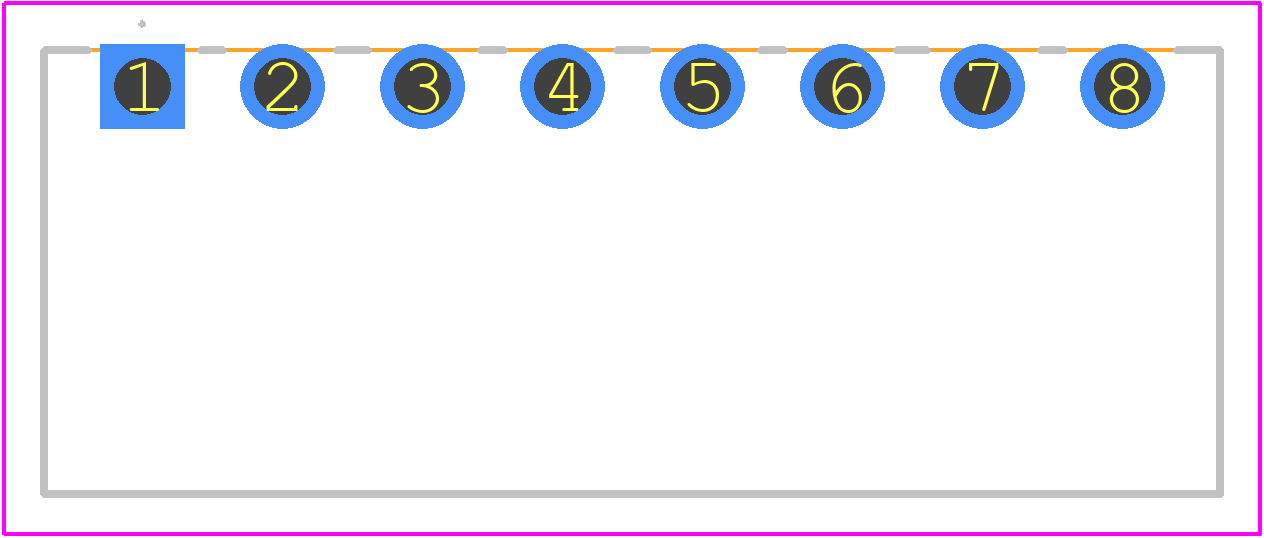

1761602001 - Weidmüller PCB footprint - Other - Other - 1761602001
click to zoom
3D Models
1761602001 - Weidmüller - 3D model - Other - 1761602001
click to zoom

1761602001 Details

  • Manufacturer Part Number:

    1761602001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1761602001 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1761602001 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1761602001 connector is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • The mating cycle for the 1761602001 connector is 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
  • Yes, the 1761602001 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require environmental compliance.
  • The recommended torque for the screw terminals on the 1761602001 connector is 0.5 Nm to 1.5 Nm, which should be applied using a torque wrench to ensure secure connections.
