The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 1761682001 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure the connector meets the specific vibration requirements of your application.
The 1761682001 has a protection rating of IP67, making it suitable for outdoor use. However, it's essential to ensure the connector is properly sealed and protected from environmental factors such as UV radiation, moisture, and extreme temperatures.
While it's technically possible to use a different wire gauge, it's not recommended. Using a wire gauge outside the recommended range (0.5 mm² to 2.5 mm²) may compromise the connector's performance, reliability, and safety.
Yes, the 1761682001 is designed to be compatible with other Weidmüller products, including their range of connectors, terminals, and interfaces. However, it's always recommended to verify compatibility before integrating the connector into your system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1761682001 Overview

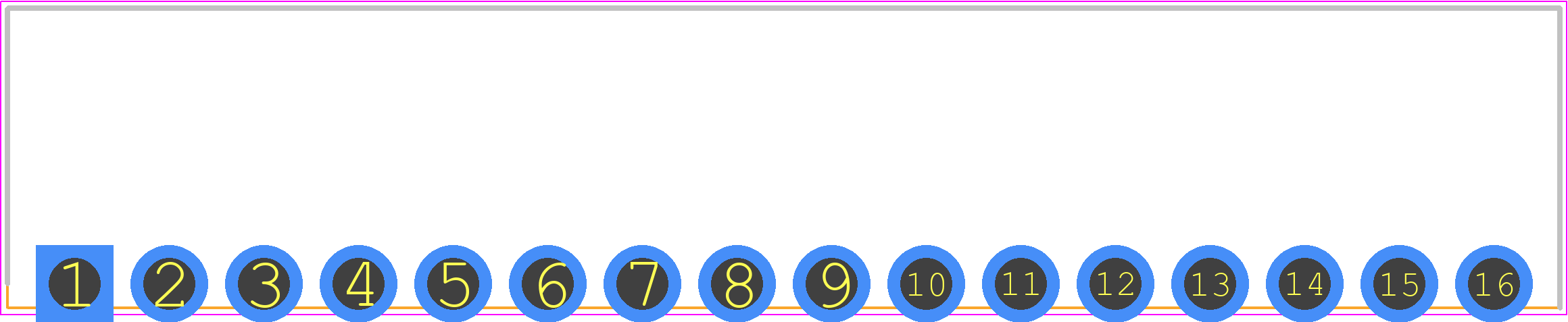

Use the download button to access the 1761682001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17616,
or try a keyword search, such as Terminals and Terminal Blocks
