1761987-1 - TE Connectivity

Description: 26 Position SAS, Mini Receptacle Connector Solder Surface Mount, Right Angle

Download 1761987-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

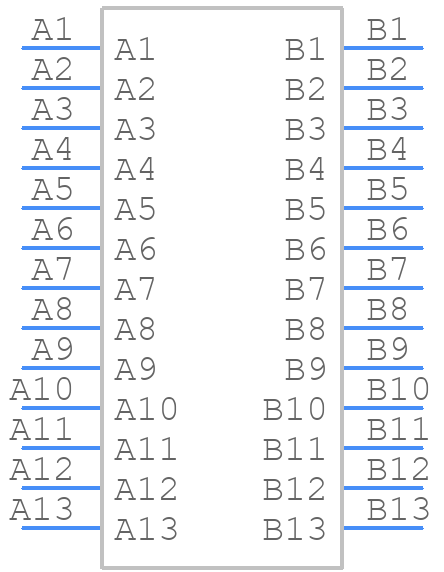

1761987-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1761987-1 - TE Connectivity PCB footprint - Other - Other - 1761987-1-1
click to zoom
3D Models
1761987-1 - TE Connectivity - 3D model - Other - 1761987-1-1
click to zoom

1761987-1 Details

  • Manufacturer Part Number:

    1761987-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.45

  • Body Depth:

    0.211 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SAS CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

1761987-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1761987-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The operating temperature range for the 1761987-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this range to maintain its performance and reliability.
  • Yes, the 1761987-1 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
  • Yes, the 1761987-1 connector can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's essential to follow the manufacturer's guidelines for wire stripping and termination to ensure reliable connections.
