Part Image

1762754 - Phoenix Contact

Description: PC 35 HC/ 3-GF-15,00 - PCB headers, nominal cross section: 35 mm<sup>2</sup>, color: green, nominal current: 125 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PC 35 HC/..-GF, pitch: 15 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 4.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 35, Pin connector pattern ali

Download 1762754 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1762754 - Phoenix Contact - PCB symbol
click to zoom

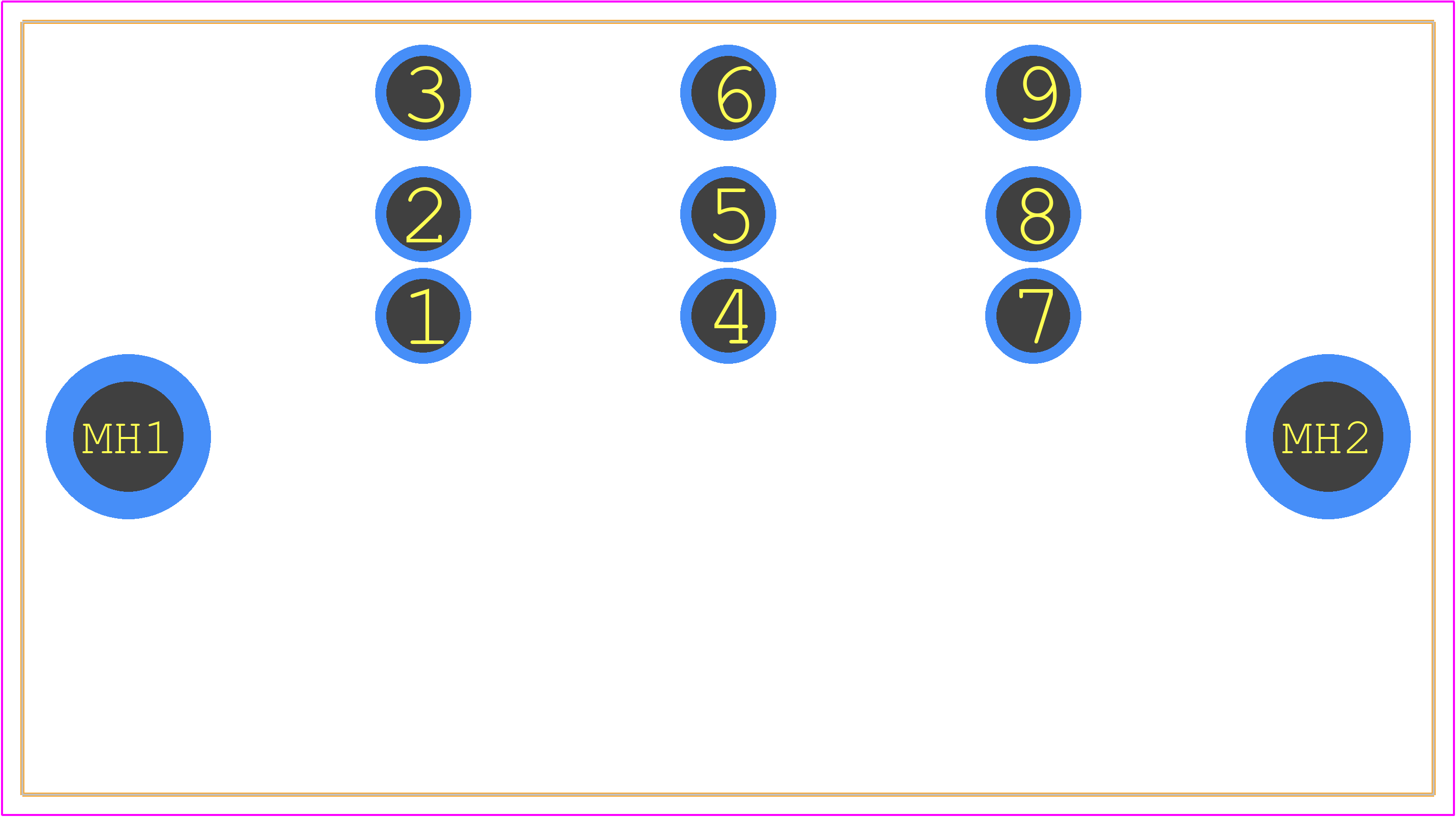

PCB Footprints
1762754 - Phoenix Contact PCB footprint - Other - Other - 1762754
click to zoom
3D Models
1762754 - Phoenix Contact - 3D model - Other - 1762754
click to zoom

1762754 Details

  • Manufacturer Part Number:

    1762754

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    125 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CCA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1762754 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1762754 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured to the panel and that the cables are properly strain-relieved to prevent damage or disconnection.
  • The 1762754 connector has a IP67 rating, which means it's protected against dust and temporary immersion in water. However, it's essential to ensure that the connector is properly sealed and that the cables are protected from environmental factors such as UV, moisture, and extreme temperatures.
  • The 1762754 connector is designed for use with specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility and avoid damage or safety issues.
  • Proper grounding and shielding are critical to ensure reliable data transmission and prevent electromagnetic interference (EMI). Follow the manufacturer's recommendations for grounding and shielding, and ensure that the connector is properly connected to a grounding point and shielded cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1762754 Overview

Use the download button to access the 1762754 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17627, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
