17660042201 - HARTING

Description: HM Power female straight 4pin, press-in, PL2

Download 17660042201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17660042201 - HARTING - PCB symbol
click to zoom
PCB Footprints

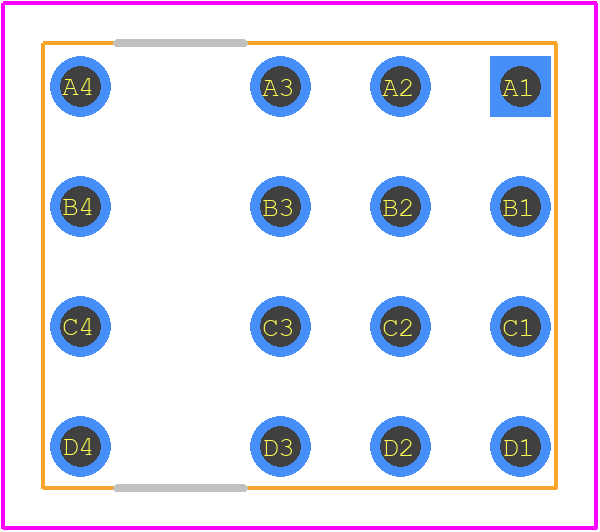

17660042201 - HARTING PCB footprint - Other - Other - 17660042201_1
click to zoom
3D Models
17660042201 - HARTING - 3D model - Other - 17660042201_1
click to zoom

17660042201 Details

  • Manufacturer Part Number:

    17660042201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

17660042201 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 17660042201 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17660042201 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 17660042201 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • Yes, the 17660042201 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum operating temperature of the 17660042201 connector is 125°C, making it suitable for use in high-temperature applications.
