1767559 - Phoenix Contact

Description: SMSTBA 2,5/20-G-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 1, number of positions: 20, number of connections: 20, product range: SMSTBA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pat

Download 1767559 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1767559 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

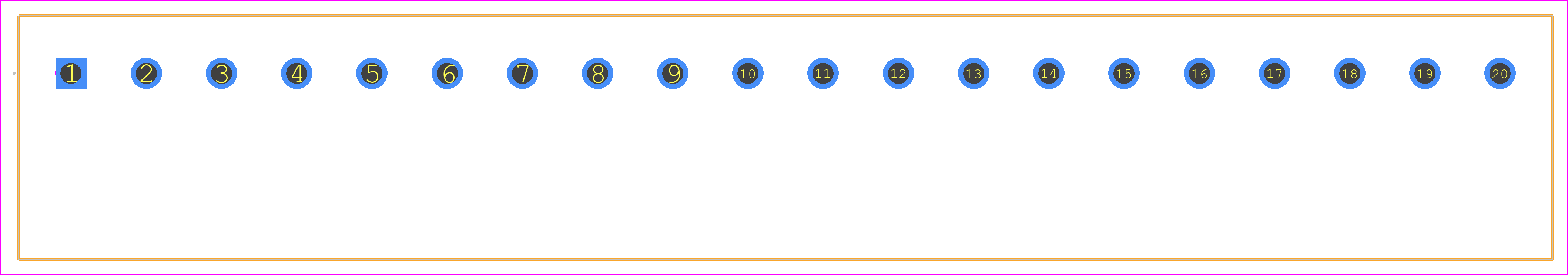

1767559 - Phoenix Contact PCB footprint - Other - Other - 1767559
click to zoom
3D Models
1767559 - Phoenix Contact - 3D model - Other - 1767559
click to zoom

1767559 Details

  • Manufacturer Part Number:

    1767559

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1767559 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1767559 is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The 1767559 has a high level of resistance to chemicals and cleaning agents, including oils, fuels, and many industrial cleaning agents. However, it's recommended to check the specific chemical resistance for your application.
  • The 1767559 has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's recommended to use additional protection measures, such as sealing or conformal coating, for extended outdoor or wet environment use.
  • The 1767559 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, from cold storage to high-temperature industrial environments.
