1768870000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 8, Clamping yoke connection, THT solder connection, 90°, Box

Download 1768870000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1768870000 - Weidmüller - PCB symbol
click to zoom

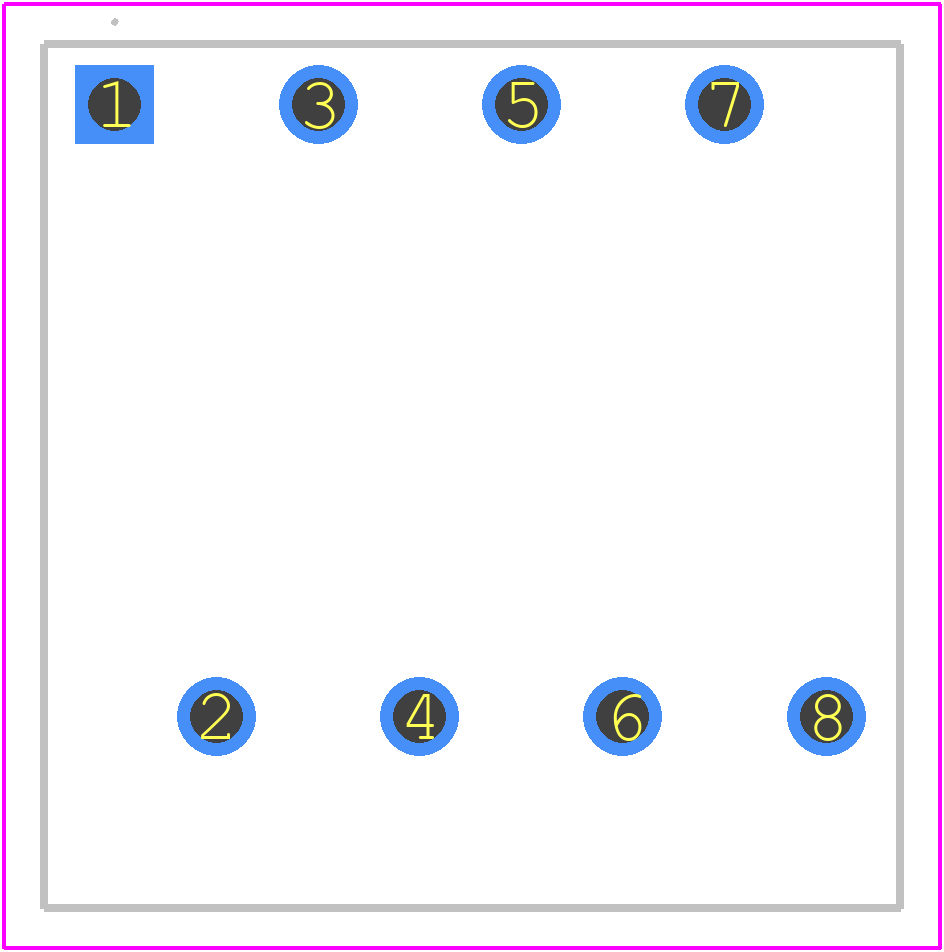

PCB Footprints
1768870000 - Weidmüller PCB footprint - Other - Other - 1768870000
click to zoom
3D Models
1768870000 - Weidmüller - 3D model - Other - 1768870000
click to zoom

1768870000 Details

  • Manufacturer Part Number:

    1768870000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.97

  • Additional Feature:

    UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    18 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

1768870000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1768870000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1768870000 is RoHS and REACH compliant, meeting the European Union's regulations for hazardous substances and chemical safety.
  • The maximum current rating of the 1768870000 is 10 A per pin, according to Weidmüller's specifications.
  • Yes, the 1768870000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1768870000 is designed to be compatible with other Weidmüller products, including their range of connectors and cable assemblies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1768870000 Overview

Use the download button to access the 1768870000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17688, or try a keyword search, such as Terminals and Terminal Blocks
