1769660000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 18, Clamping yoke connection, THT solder connection, 90°, Box

Download 1769660000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1769660000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

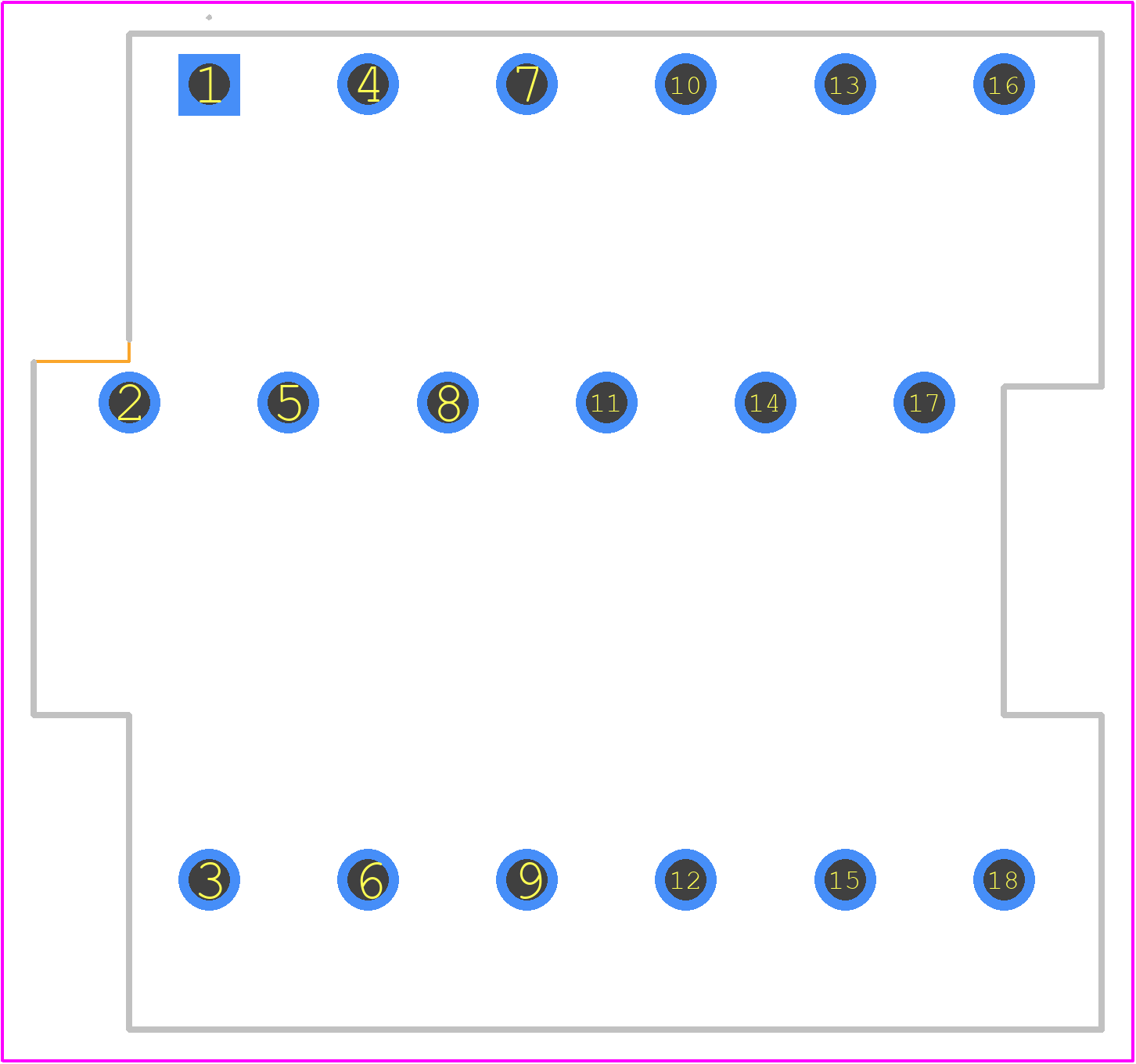

1769660000 - Weidmüller PCB footprint - Other - Other - 1769660000-2
click to zoom
3D Models
1769660000 - Weidmüller - 3D model - Other - 1769660000-2
click to zoom

1769660000 Details

  • Manufacturer Part Number:

    1769660000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    19 Weeks, 2 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.85

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    12

  • Rated Current:

    18 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1769660000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1769660000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1769660000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1769660000 is 10A per contact, making it suitable for use in applications that require high current handling.
  • Yes, the 1769660000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • The 1769660000 has an IP20 rating, providing protection against solid objects and fingers, but not against water or moisture.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1769660000 Overview

Use the download button to access the 1769660000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17696, or try a keyword search, such as Terminals and Terminal Blocks
