1769700000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 30, Clamping yoke connection, THT solder connection, 90°, Box

Download 1769700000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1769700000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

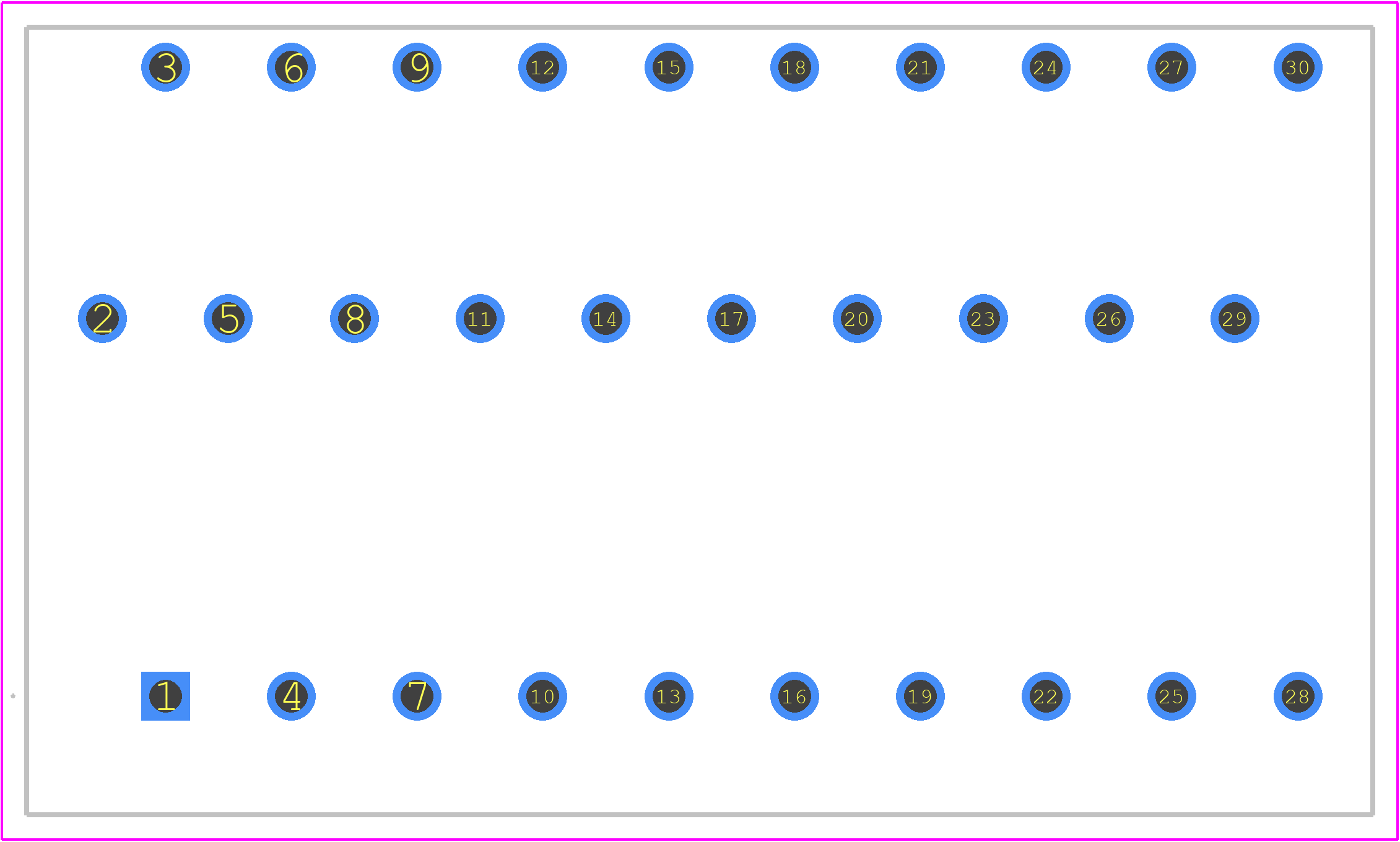

1769700000 - Weidmüller PCB footprint - Other - Other - 1769700000-3
click to zoom
3D Models
1769700000 - Weidmüller - 3D model - Other - 1769700000-3
click to zoom

1769700000 Details

  • Manufacturer Part Number:

    1769700000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.85

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    20

  • Rated Current:

    18 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1769700000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1769700000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1769700000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373, making it suitable for use in harsh industrial environments.
  • The 1769700000 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 1769700000 connector is not intended for use in explosive atmospheres. If you need a connector for use in hazardous locations, you should consider a different product that meets the relevant standards, such as ATEX or IECEx.
  • The recommended torque for the screw terminals on the 1769700000 connector is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1769700000 Overview

Use the download button to access the 1769700000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17697, or try a keyword search, such as Terminals and Terminal Blocks
