1769760000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 48, Clamping yoke connection, THT solder connection, 90°, Box

Download 1769760000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

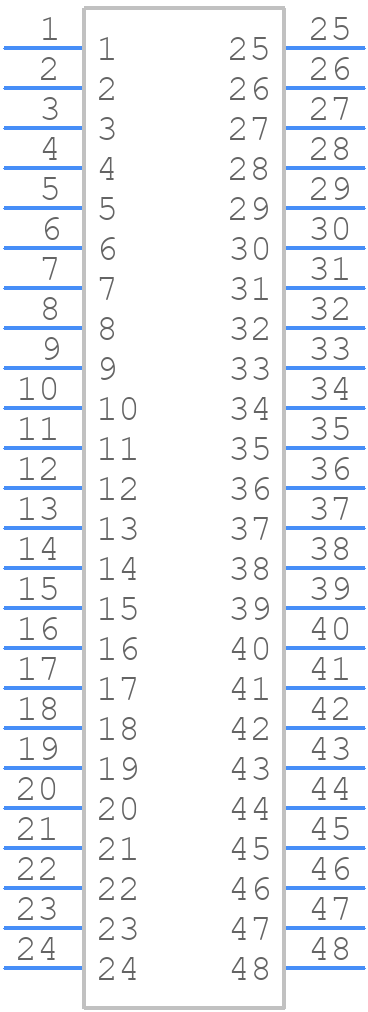

1769760000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

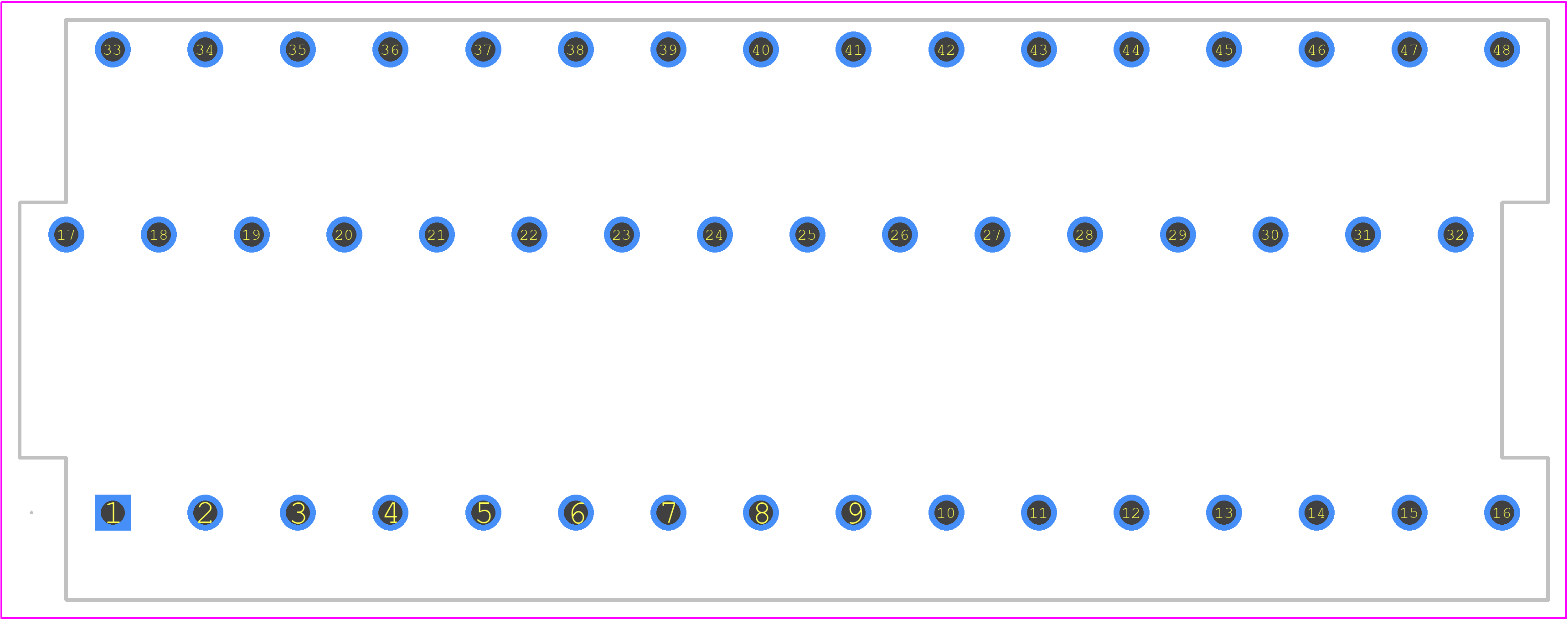

1769760000 - Weidmüller PCB footprint - Other - Other - 1769760000-5
click to zoom
3D Models
1769760000 - Weidmüller - 3D model - Other - 1769760000-5
click to zoom

1769760000 Details

  • Manufacturer Part Number:

    1769760000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    16 Weeks, 5 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.85

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    32

  • Rated Current:

    18 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1769760000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1769760000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1769760000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The maximum current rating of the 1769760000 is 16 A per pin, according to Weidmüller's specifications.
  • Yes, the 1769760000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1769760000 is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1769760000 Overview

Use the download button to access the 1769760000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17697, or try a keyword search, such as Terminals and Terminal Blocks
