1769845 - Phoenix Contact

Description: SMSTBA 2,5/ 6-G - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: SMSTBA 2,5/..-G, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignm

Download 1769845 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1769845 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

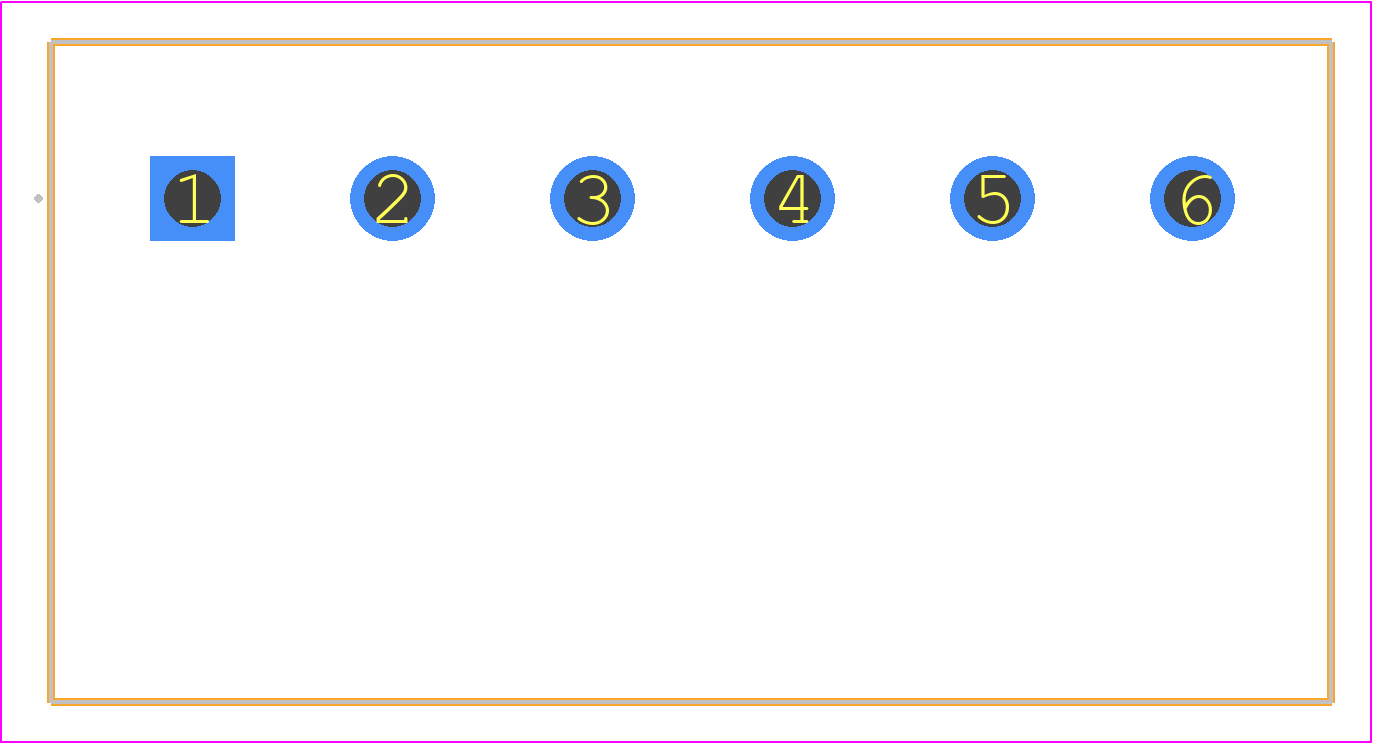

1769845 - Phoenix Contact PCB footprint - Other - Other - 1769845
click to zoom
3D Models
1769845 - Phoenix Contact - 3D model - Other - 1769845
click to zoom

1769845 Details

  • Manufacturer Part Number:

    1769845

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.54

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    12 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1769845 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1769845 connector is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The connector is resistant to many common chemicals and cleaning agents, but it's recommended to check the specific compatibility before exposure.
  • The operating temperature range for the 1769845 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The connector has a IP67 rating, which means it is protected against temporary immersion in water and can withstand humid environments.
