- Part Number 1770461
- Manufacturer Phoenix Contact
- Pin Count 4
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1770461-1
- Released Date Apr 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1770461 Details
-
Manufacturer Part Number:
1770461
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Phoenix Contact
-
YTEOL:
0
-
Additional Feature:
STANDARD: UL 94V-0, POLYAMIDE
-
Fastening Method:
SPRING CAGE
-
Mounting Type:
BOARD
-
Number of Decks:
1
1770461 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
-
Yes, the 1770461 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain the connector's integrity.
-
The 1770461 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
-
While the connector is designed for AWG 20-24 wires, you can use other wire sizes, but ensure the wire insulation diameter and stripping length are compatible with the connector's specifications. Consult Phoenix Contact's documentation or contact their support for guidance.
-
The 1770461 connector is rated for operation in temperatures ranging from -40°C to 105°C. However, the temperature rating may vary depending on the specific application and environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1770461 Overview

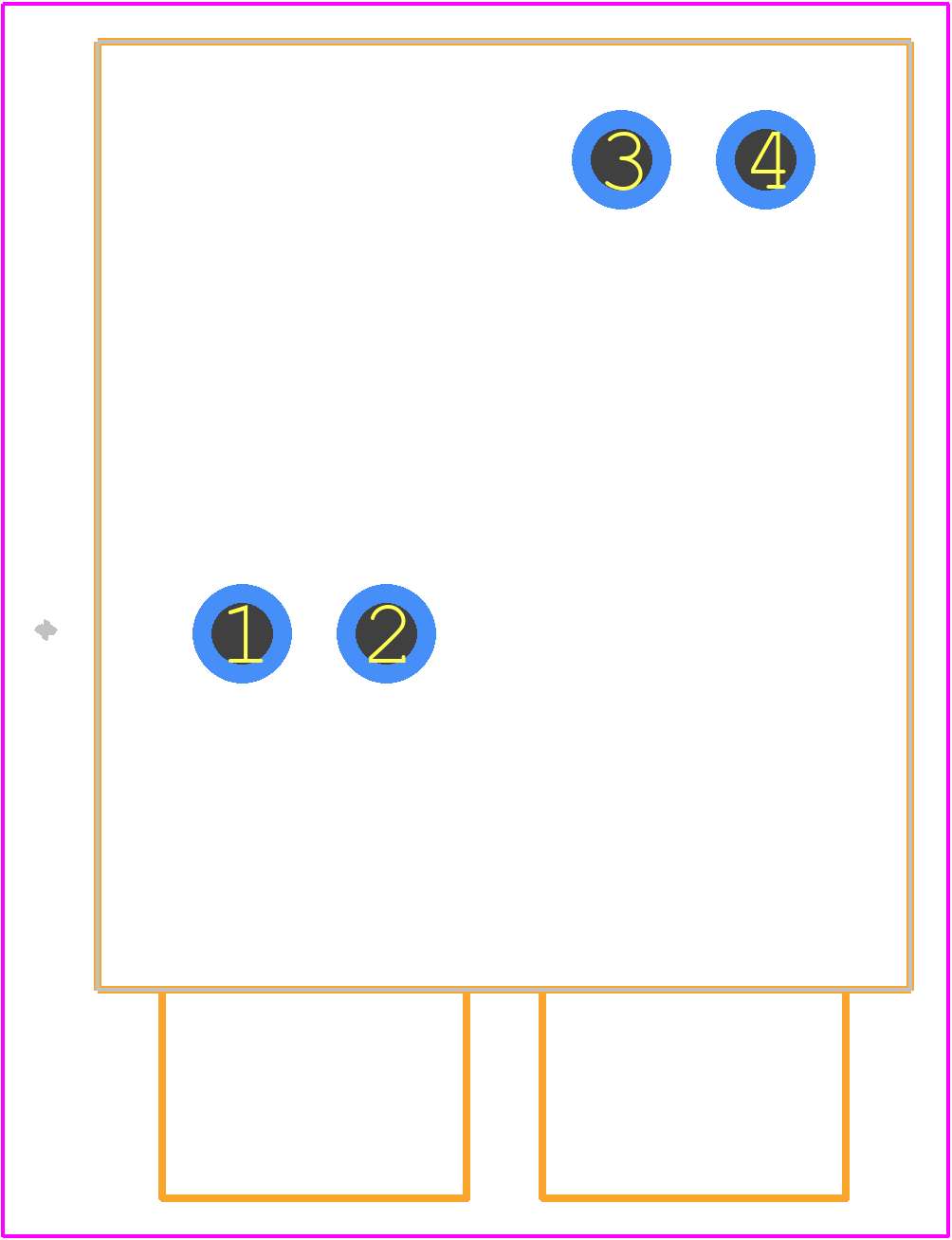

Use the download button to access the 1770461 schematic symbol, PCB footprint, and 3D model.
