- Part Number 1770539
- Manufacturer Phoenix Contact
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1770539
- Released Date Jan 31, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1770539 Details
-
Manufacturer Part Number:
1770539
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Phoenix Contact
-
YTEOL:
0
-
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
1770539 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and assembly guidelines for optimal results.
-
Yes, the 1770539 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 2. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
-
The 1770539 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
-
While it's technically possible, using a different wire gauge than recommended may compromise the connector's performance and reliability. It's essential to follow the recommended wire gauge and stripping length to ensure optimal connections.
-
To ensure proper EMI shielding, ensure the connector is properly grounded to the PCB and the shield is connected to the connector's shield pin. Additionally, consider using EMI-absorbing materials and following proper PCB design guidelines for EMI reduction.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1770539 Overview

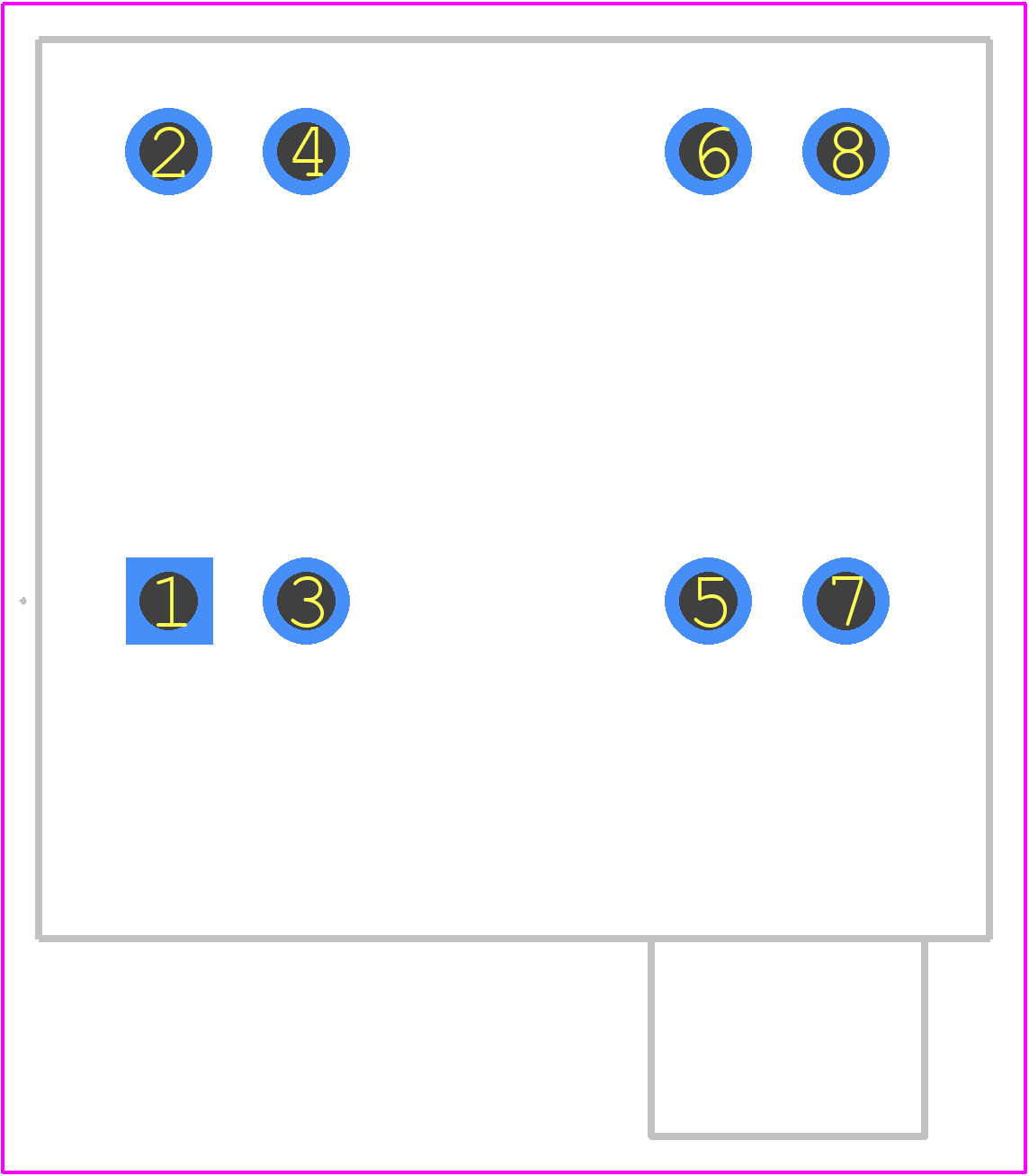

Use the download button to access the 1770539 schematic symbol, PCB footprint, and 3D model.
