- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1770568
- Part Number 1770568
- Manufacturer Phoenix Contact
- Pin Count 20
- Part Category Connector
- Package Category Other

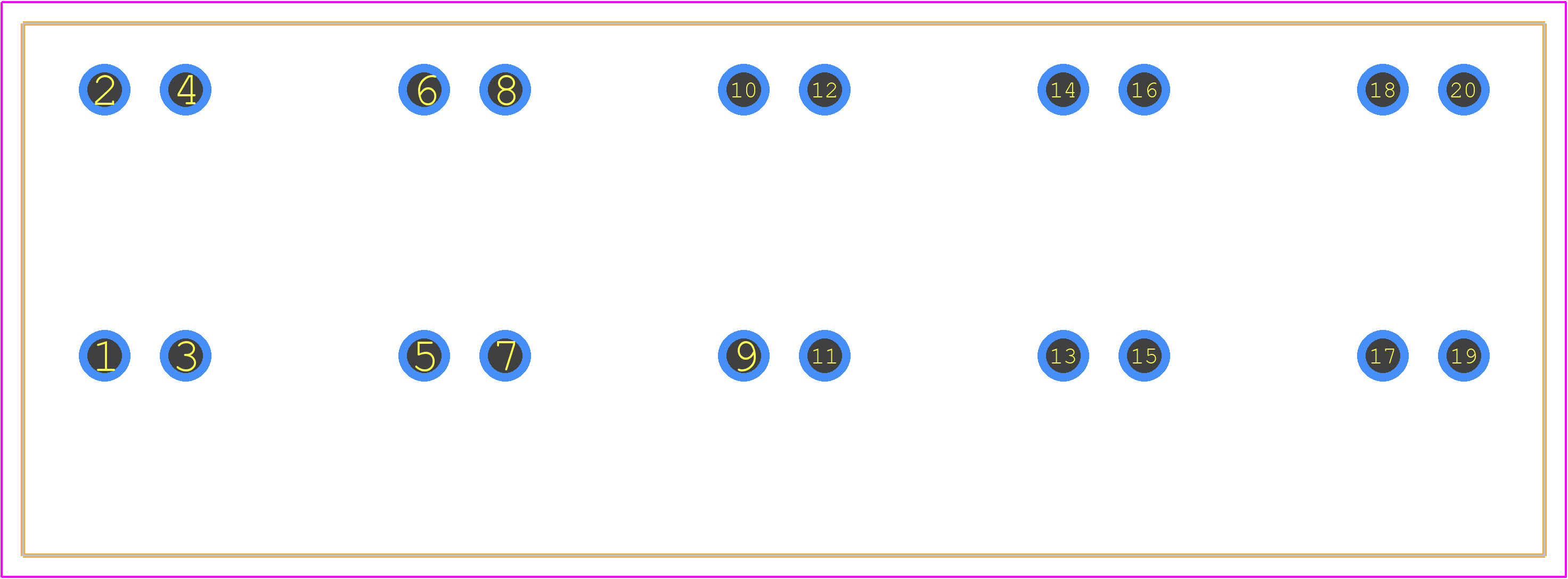

- Footprint Name Other - 1770568-3
- Released Date Jan 28, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1770568 Details
-
Manufacturer Part Number:
1770568
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Phoenix Contact
-
YTEOL:
0
-
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
1770568 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
-
Yes, the 1770568 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 1, Class 1. However, it's crucial to ensure proper mounting and screwing to the PCB.
-
The 1770568 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
-
While the connector is designed for AWG 20-24 wires, you can use other wire sizes, but ensure the wire insulation diameter and stripping length are compatible with the connector's specifications. Consult Phoenix Contact's application notes for guidance.
-
Yes, ensure the PCB layout follows Phoenix Contact's recommended footprint and keep-out zones to prevent interference with the connector's screwing mechanism and wire routing.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1770568 Overview

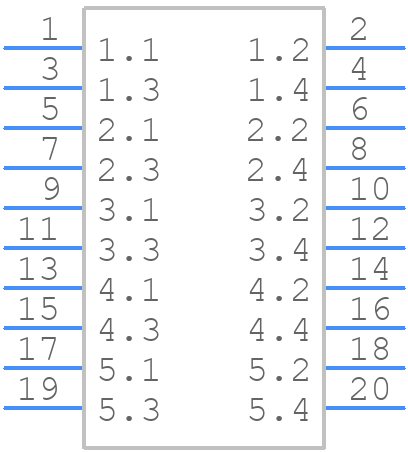

Use the download button to access the 1770568 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17705,
or try a keyword search, such as Terminals and Terminal Blocks
