1771017 - Phoenix Contact

Description: PTSM 0,5/ 8-2,5-V THR R44 - Printed circuit board terminal, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: PTSM 0,5/..-V-THR, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: THR soldering / wave soldering, conductor/PCB connection direction: 90 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 2.1 mm, number of solder pins per potential:

Download 1771017 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1771017 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

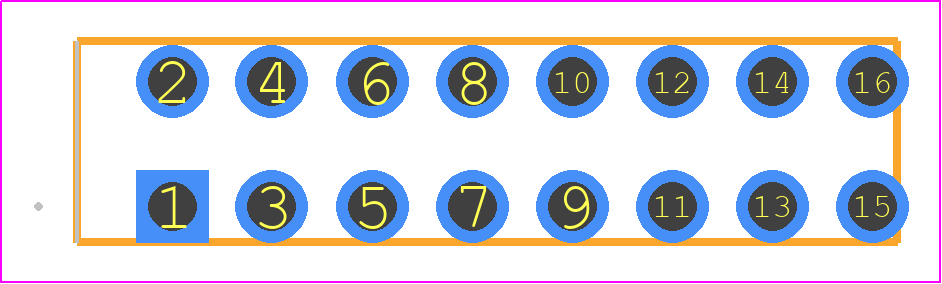

1771017 - Phoenix Contact PCB footprint - Other - Other - 1771017
click to zoom
3D Models
1771017 - Phoenix Contact - 3D model - Other - 1771017
click to zoom

1771017 Details

  • Manufacturer Part Number:

    1771017

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1771017 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1771017 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • Yes, the 1771017 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.
  • The operating temperature range for the 1771017 connector is -40°C to 125°C, making it suitable for use in a wide range of environments.
  • Yes, the 1771017 connector is designed to be resistant to moisture and humidity, making it suitable for use in humid or wet environments, such as in outdoor or industrial applications.
