Part Image

1775042001 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 6, THT/THR solder connection, Box

Download 1775042001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1775042001 - Weidmüller - PCB symbol
click to zoom

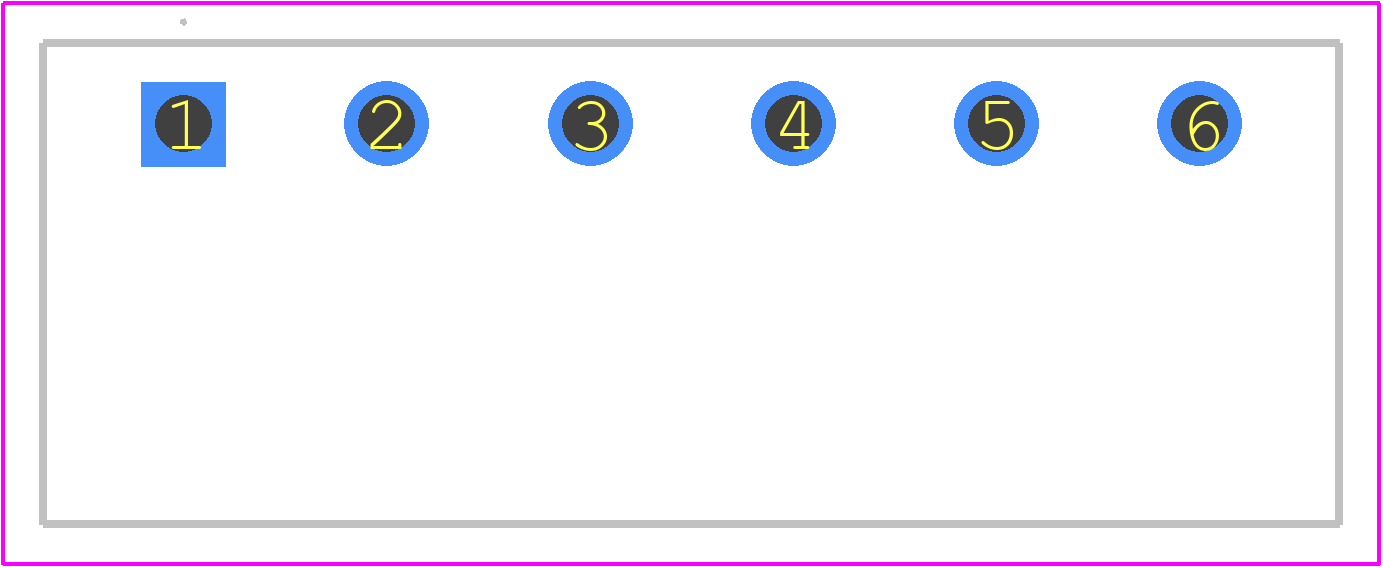

PCB Footprints
1775042001 - Weidmüller PCB footprint - Other - Other - 1775042001-1
click to zoom
3D Models
1775042001 - Weidmüller - 3D model - Other - 1775042001-1
click to zoom

1775042001 Details

  • Manufacturer Part Number:

    1775042001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; PCT; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1775042001 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 0.8 Nm, as specified in the Weidmüller application notes.
  • While the connector is designed for industrial use, it is not specifically rated for outdoor use. However, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
  • Yes, the 1775042001 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for specific vibration requirements.
  • The maximum wire size that can be used with the 1775042001 connector is 2.5 mm² (AWG 14) according to the datasheet.
  • Yes, the 1775042001 connector is UL recognized and meets the requirements of UL 1977 and UL 498A.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1775042001 Overview

Use the download button to access the 1775042001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17750, or try a keyword search, such as Terminals and Terminal Blocks
