1775468-2 - TE Connectivity

Description: Body Features: Connector Profile Standard | Configuration Features: Number of Ports 2 | Number of Positions 8 | Panel Ground Location Between Ports | Contact Features: Contact Current Rating (Max) 2.5 AMP | Contact Mating Area Plating Material Gold Flash | Housing Features: Housing Color Black | Centerline (Pitch) 2.5 MM | Housing Material LCP GF30 (Liquid Crystal Polymer) | Centerline (Pitch) 2 MM | Centerline (Pitch) .078 INCH | Body Orientation Right Angle | Centerline (Pitch) .098 INCH | Housing Materia

Download 1775468-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1775468-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

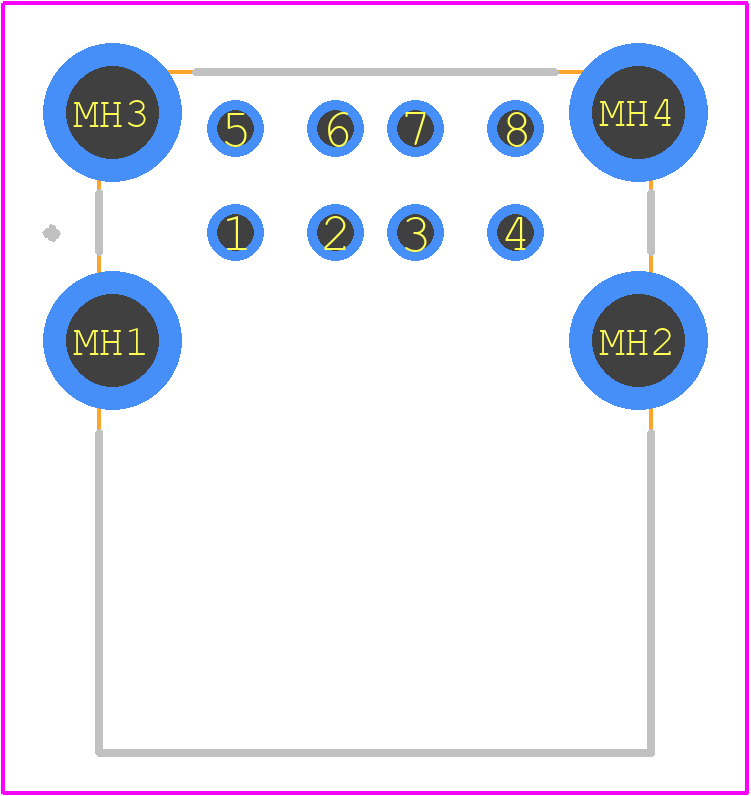

1775468-2 - TE Connectivity PCB footprint - Other - Other - 1775468-2-1
click to zoom
3D Models
1775468-2 - TE Connectivity - 3D model - Other - 1775468-2-1
click to zoom

1775468-2 Details

  • Manufacturer Part Number:

    1775468-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    1500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER/GF POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2.5 A

  • Terminal Length:

    0.112 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1775468-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1775468-2 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 1775468-2 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The 1775468-2 connector has a IP67 rating, which means it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not designed for exposure to harsh chemicals. Consult with TE Connectivity or a qualified engineer to determine the connector's suitability for your specific environmental requirements.
  • The 1775468-2 connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1775468-2 Overview

Use the download button to access the 1775468-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17754, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
