1775748-1 - TE Connectivity

Description: Body Features: LED Color (Top Right) Green | Shield Material Brass | Shield Plating Material Nickel | LED Color (Top Left) Yellow | Modular Jack Latch Orientation Inverted - Latch Up | Connector Profile Offset - Overhangs PCB | Configuration Features: Number of PCB Ground Tabs 2 | Connector Contact Density Standard | Number of Positions 8 | PCB Mount Orientation Right Angle | Port Configuration Single Port | Port Matrix Configuration 1 x 1 | Status Light Type LED | Number of Loaded Positions 8 | Contact Fea

Download 1775748-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1775748-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

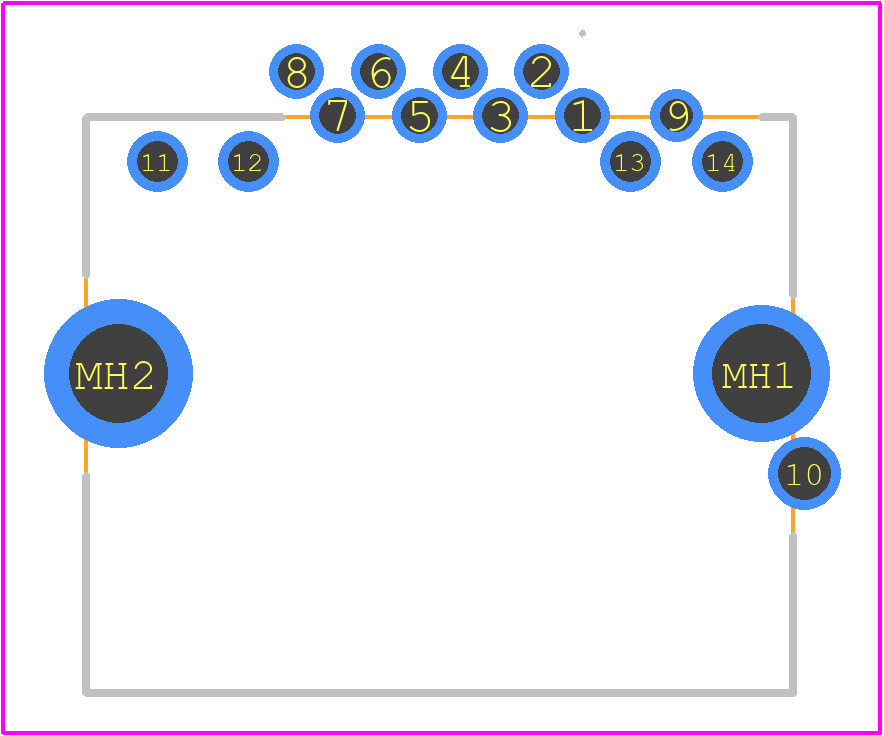

1775748-1 - TE Connectivity PCB footprint - Other - Other - 1775748-1-2
click to zoom
3D Models
1775748-1 - TE Connectivity - 3D model - Other - 1775748-1-2
click to zoom

1775748-1 Details

  • Manufacturer Part Number:

    1775748-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.435 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    6u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.079 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1775748-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1775748-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 1775748-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and aerospace.
  • Yes, it's recommended to clean the connector contacts with a soft brush and a mild detergent solution to prevent corrosion and ensure reliable connections. Avoid using harsh chemicals or abrasive materials that can damage the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1775748-1 Overview

Use the download button to access the 1775748-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17757, or try a keyword search, such as Telecom and Datacom Connectors
