1776260-6 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Wire Entry Location Top | Wire Entry Angle 180° | Number of Positions 6 | Stacking Configuration Side Stackable | Number of Rows 1 | Stacked Levels Without | Contact Features: Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 10 AMP | Contact Base Material Brass | Dimensions: Wire Size .3 – 2 MMSQ | Wire Size 22 – 14 AWG | Electrical Characteristics: Operating Voltage 300 VAC | Hous

Download 1776260-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1776260-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

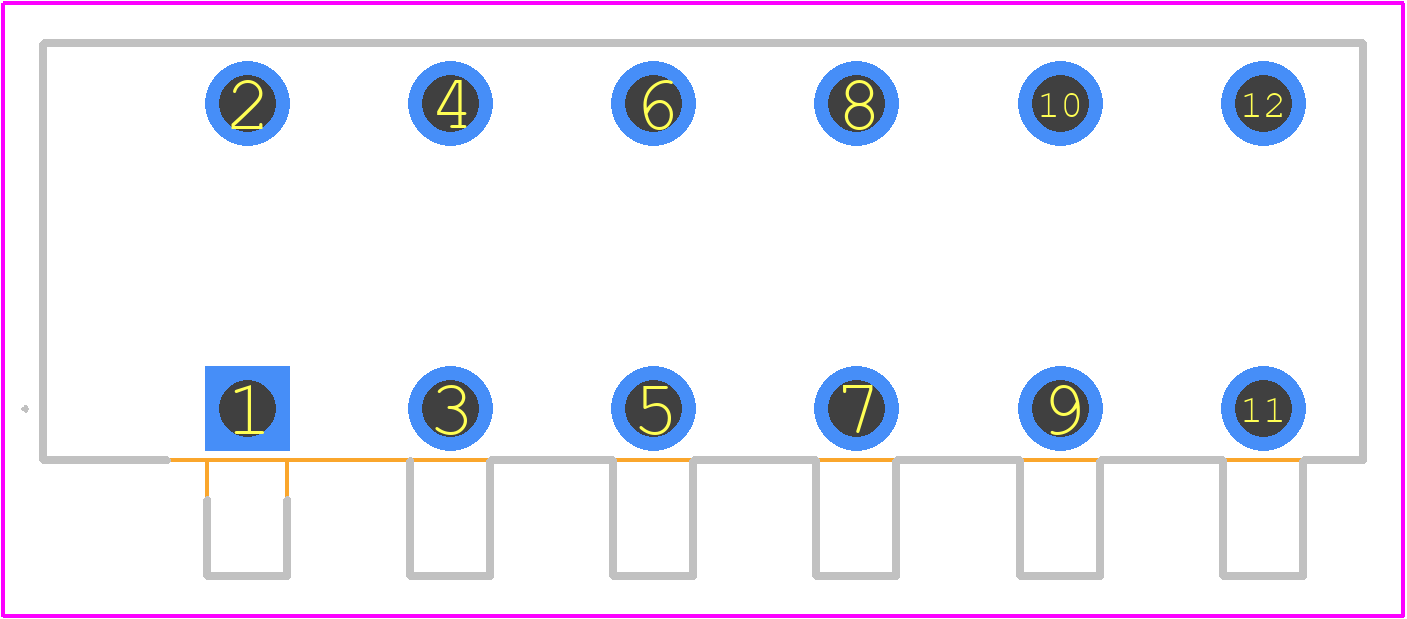

1776260-6 - TE Connectivity PCB footprint - Other - Other - 1776260-6-1
click to zoom
3D Models
1776260-6 - TE Connectivity - 3D model - Other - 1776260-6-1
click to zoom

1776260-6 Details

  • Manufacturer Part Number:

    1776260-6

  • Brand Name:

    Buchanan

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0, NYLON66

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2 mm2

  • Wire Gauge:

    14 AWG

1776260-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1776260-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The operating temperature range for the 1776260-6 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • The 1776260-6 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it's not recommended for use in applications with exposure to harsh chemicals or prolonged immersion in water.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1776260-6 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1776260-6 Overview

Use the download button to access the 1776260-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17762, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
