1776260-8 - TE Connectivity

Description: Header, Wire-to-Board, 8 Position, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 22 – 14 AWG Wire Size, PCB Terminal Blocks

Download 1776260-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1776260-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

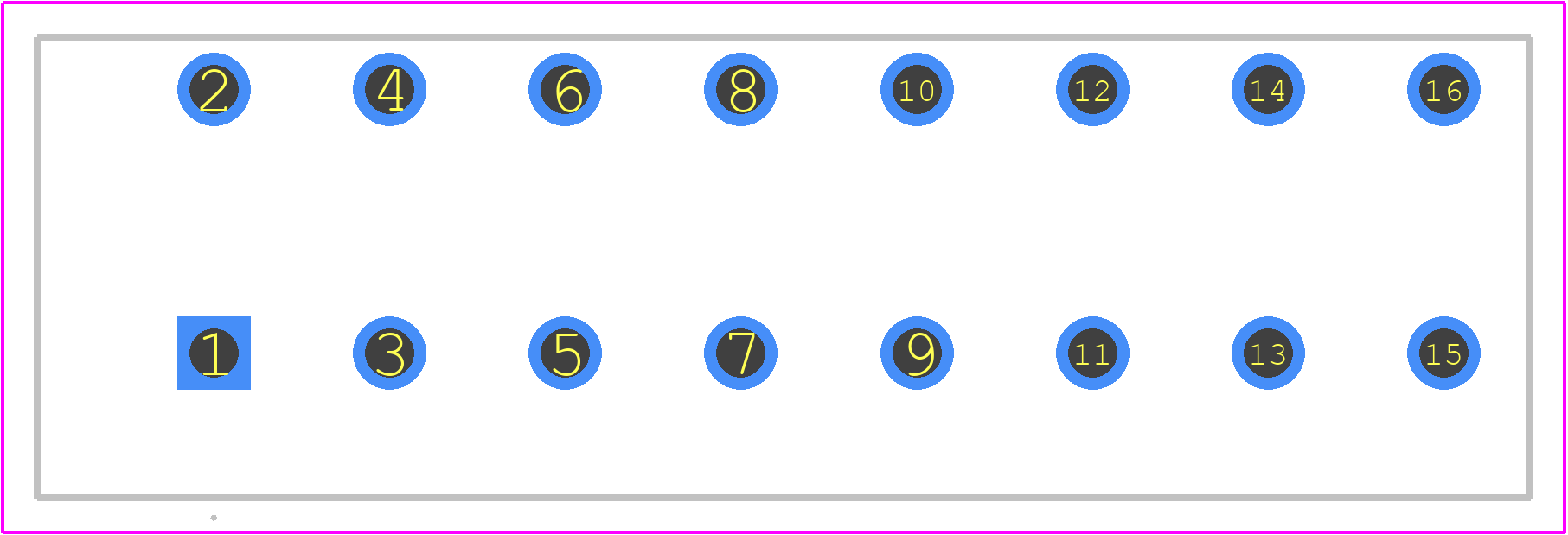

1776260-8 - TE Connectivity PCB footprint - Other - Other - 1776260-8-1
click to zoom
3D Models
1776260-8 - TE Connectivity - 3D model - Other - 1776260-8-1
click to zoom

1776260-8 Details

  • Manufacturer Part Number:

    1776260-8

  • Brand Name:

    Buchanan

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0, NYLON66

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2 mm2

  • Wire Gauge:

    14 AWG

1776260-8 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 1776260-8 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 1776260-8 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 1776260-8 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the 1776260-8 connector can accommodate wire sizes from 16 AWG to 20 AWG, but the recommended wire size is 18 AWG for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1776260-8 Overview

Use the download button to access the 1776260-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17762, or try a keyword search, such as Terminals and Terminal Blocks
